John Deere 3010 Wheel Transmission


John Deere 3010 Wheel industrial tractor photo
1961 - 1963
New Generation Series
Industrial tractor
Series:20103010 Wheel4010
Transmission
TransmissionJohn Deere Syncro-Range
Typepartially synchronized
Gears8 forward and 3 reverse
Clutch304.8mm dry disc
Oil capacity38 qts
36.0 L
Synchro-Range requires the tractor to be stopped and clutch depressed to select one of four shift stations. Once a station is selected the tractor can be shifted on the move between the two forward gears (and single reverse in stations 1, 2, and 3) by using the clutch.
Speeds

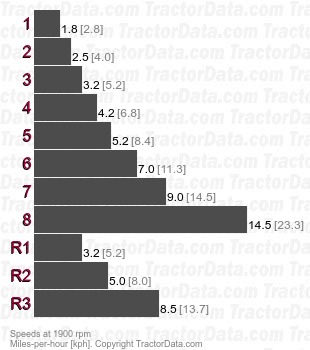

3010 Wheel Syncro-Range partially synchronized speeds
