John Deere 2010 Wheel Engine


John Deere 2010 Wheel industrial tractor photo
1960 - 1965
New Generation Series
Industrial tractor
Series:10102010 Wheel3010
Engines overview
John Deere 2.4L 4-cyl gasoline
John Deere 2.7L 4-cyl diesel

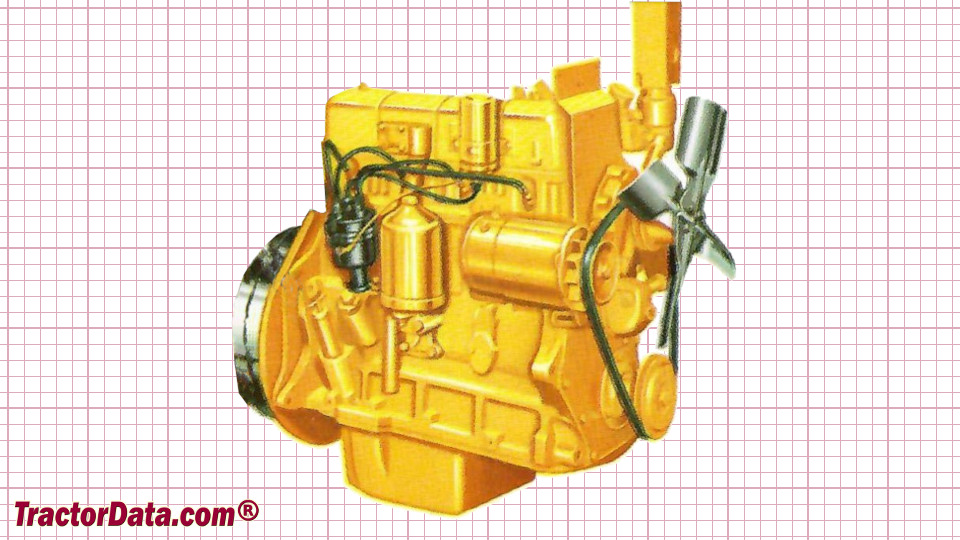

Engine Detail
John Deere
gasoline
4-cylinder
liquid-cooled
Displacement144.5 ci
2.4 L
Bore/Stroke3.625x3.50 inches
92 x 89 mm
Air cleaneroil bath
Compression7.9:1
Rated RPM2500
Torque114.3 lb-ft
155.0 Nm
Torque RPM1500
Starter volts12
Oil capacity5 qts
4.7 L
Coolant capacity12 qts
11.4 L

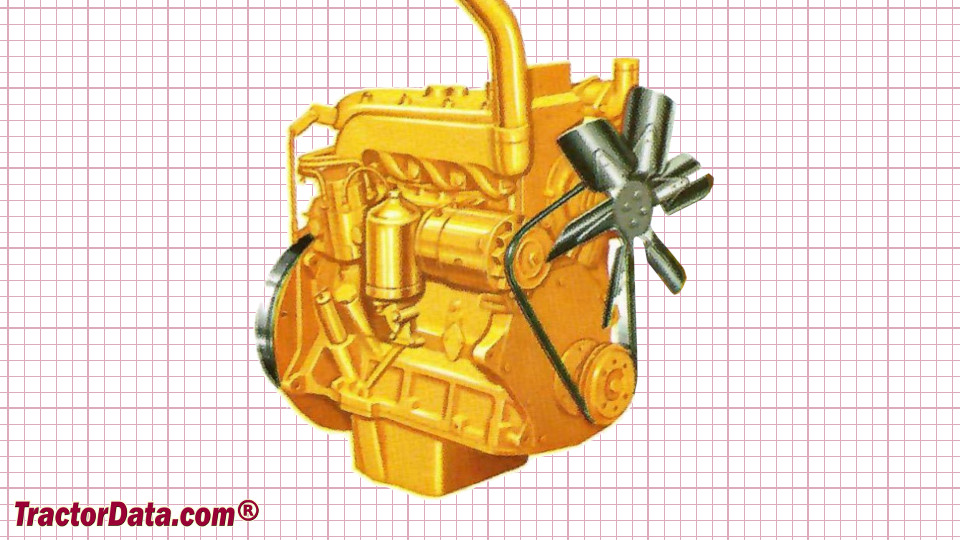

Engine Detail
John Deere
diesel
4-cylinder
liquid-cooled
Displacement165.1 ci
2.7 L
Bore/Stroke3.875x3.50 inches
98 x 89 mm
Pre-heatingglow plugs
Compression19:1
Rated RPM2500
Torque119.8 lb-ft
162.4 Nm
Torque RPM1500
Starter volts12
Oil capacity5 qts
4.7 L
Coolant capacity12 qts
11.4 L
