Minneapolis-Moline UTI

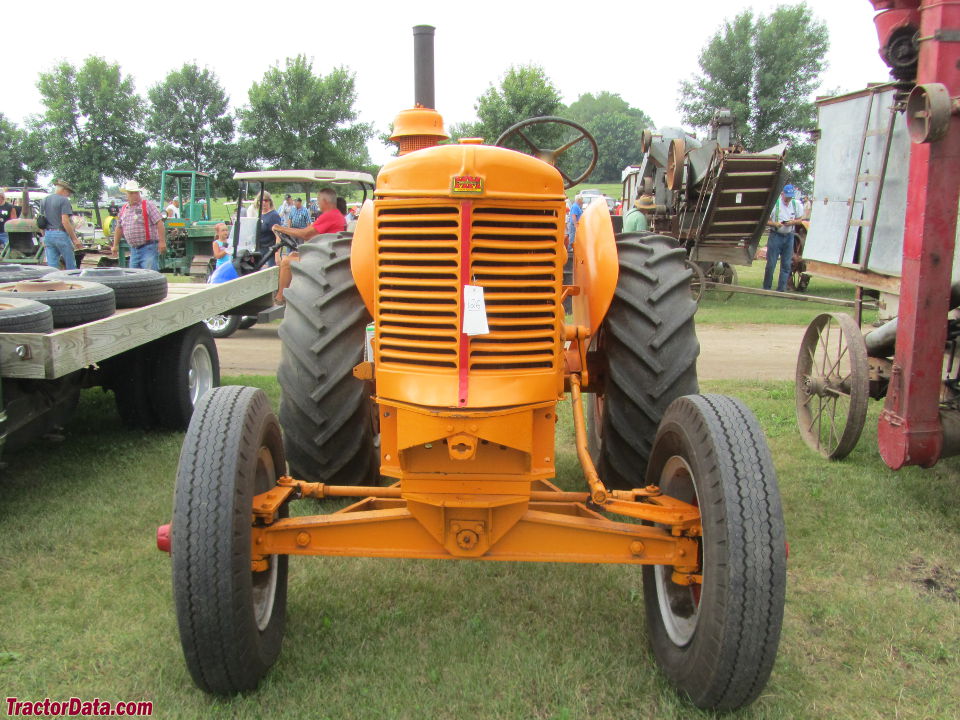

Minneapolis-Moline UTI tractor photo
1940 - 1959
Industrial tractor
Industrial tractor
Total built357 (UTIL-M)
 42 (UMIL)
The UTI was the industrial version of the Minneapolis-Moline U. Several versions were built. The UTIL offered a six-speed shuttle. The UTIL-D used a diesel engine and was built from 1953 to 1959. The UTIL-M was for the US military and only built in 1953. The UMIL variant used a 340B-4 engine.
UTIDdiesel engine
UTILshuttle transmission
UTIL-Mmilitary version
Minneapolis-Moline UTI Engines
Minneapolis-Moline 4.6L 4-cyl gasoline
Minneapolis-Moline gasoline
Fuel tank21.5 gal
81.4 L
Aux. fuel1 gal
3.8 L
Engine details ...
Minneapolis-Moline UTI Transmissions
5-speed unsynchronized gear
6-speed mechanical shuttle
Transmission details ...
Minneapolis-Moline UTI Power
Engine49 hp
36.5 kW
Two-wheel drive
Final drivesbull gear
Manual steering
Open operator station.
Power Take-off (PTO)
Rear PTO Type540
Dimensions & Tires
Wheelbase87.9 inches
223 cm
Weight7400 lbs
3356 kg
Front tire8.25-20
Rear tire12.00-28
Full dimensions and tires ...

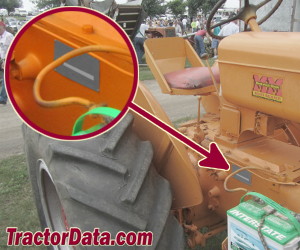

UTI Serial Number Location
Minneapolis-Moline UTI serial number location
Right side of tractor, just ahead of rear axle.
Charging systemgenerator
Battery volts6

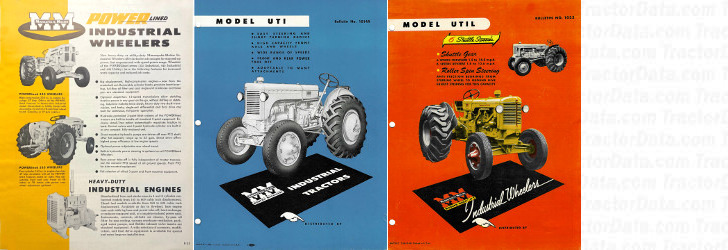

UTI references literature
Power Lined Industrial Wheelers published by Minneapolis-Moline
Model UTI published in 1948, by Minneapolis-Moline
Model UTIL published in 1948, by Minneapolis-Moline
