Minneapolis-Moline UTI Transmission
|
|
| Transmission options | |
| 5-speed unsynchronized gear | |
| 6-speed mechanical shuttle |
| Transmission | |
| Type | unsynchronized gear |
| Gears | 5 forward and 1 reverse |
| Clutch | dry disc |
| Oil capacity | 52 qts 49.2 L |
| Speeds | |
| With 12.00-28 rear tires. | |
|

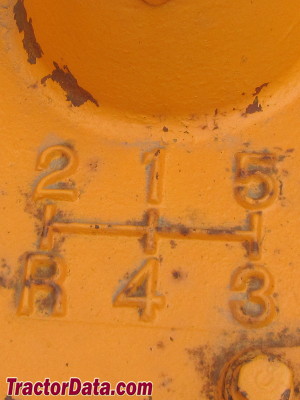

| Shift Pattern | |
 |
| Transmission | |
| Type | mechanical shuttle |
| Gears | 6 forward and reverse |
| Oil capacity | 52 qts 49.2 L |
| The 6-speed shuttle was used on the model UTIL. Built from 1948 to 1957. | |

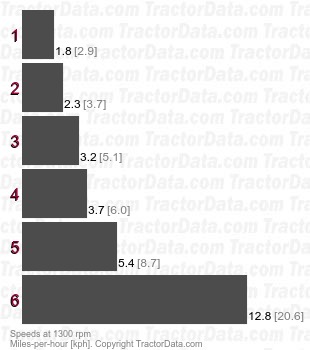

| Speeds | |
| With 12.00-28 rear tires. Reverse speeds are 12% slower than forward. | |
|
