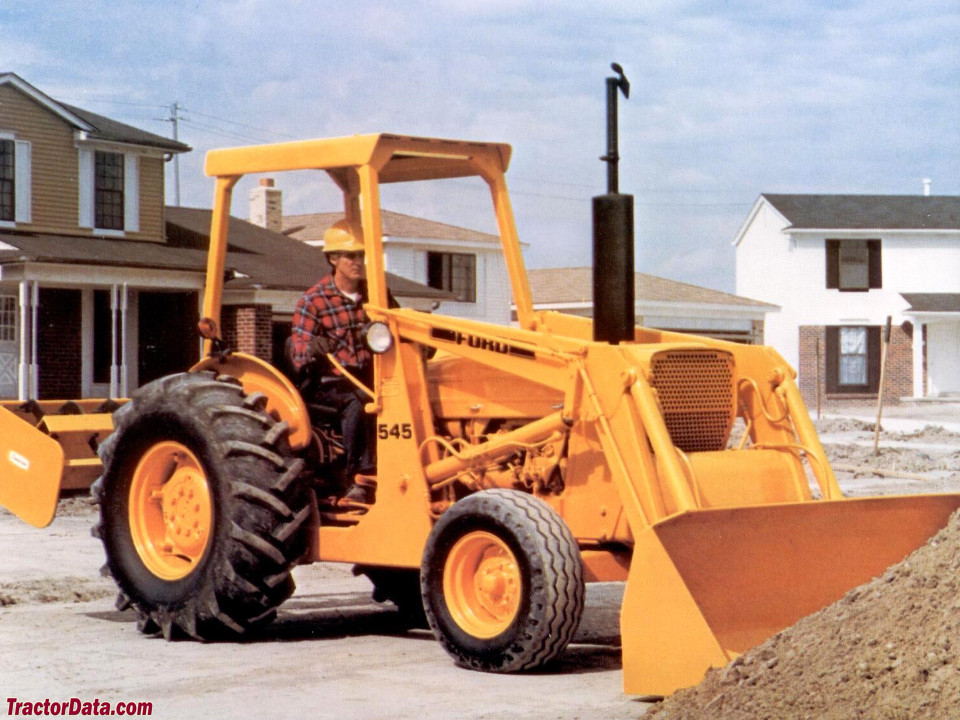

Ford 545
| | 1979 - 1983 |
| Industrial tractor |
|
Series map:
445
545
47.0hp
55.0hp
| Production |
| Manufacturer | Ford
|
| Industrial tractor |
| Ford 545 Power |
| Engine (gross) | 59.5 hp
44.4 kW
|
| Engine | 55 hp
41.0 kW
|
| PTO (claimed) | 52 hp
38.8 kW
|
| Mechanical |
| Two-wheel drive |
| Steering | hydrostatic power
|
| Two-post ROPS. Four-post ROPS canopy optional. High-clearance four-post ROPS with backhoe. |
| Capacity |
| Fuel | 16 gal
60.6 L
|
| Hydraulic system | 9.1 gal (loader)
34.4 L
|
| Rear axle | 8.5 qts
8.0 L
|
| | 12.1 qts (independent PTO)
11.5 L
|
| Hydraulics |
| Type | open center
|
| Capacity | 9.1 gal (loader)
34.4 L
|
| Pressure | 2500 psi
172.4 bar
|
| Pump flow | 5.6 gpm
21.2 lpm
|
| | 8.3 gpm (independent PTO)
31.4 lpm
|
| | 27 gpm (loader/backhoe)
102.2 lpm
|
| Steering flow | 5.9 gpm
22.3 lpm
|
| Tractor hitch |
| Rear Type | I
|
| Rear lift (at 24"/610mm) | 3,080 lbs
1397 kg
|
| Power Take-off (PTO) |
| Rear PTO | transmission (optional)
|
| | independent (optional)
|
| Rear PTO Type | 540
|
| Electrical |
| Charging system | alternator
|
| Charging amps | 32
|
| | 51 (optional)
|
| Battery CCA | 750
|
| Battery volts | 12
|
| Battery AH | 128
|
| References |
 |
| 231 340 445 531 540 545 Operator's Manual (SE-3718) published in 1978 |
| New Tractors, Loaders, Backhoes published in 1979, by Ford |
| Buyer's Guide published in 1979, by Ford |
| Buyer's Guide published in 1980, by Ford |
| 1982 Industrial Buyer's Guide published by Ford |
| 1983 Industrial Buyer's Guide published by Ford |
