Tractors > Ford > 540A

Ford 540A Transmission



Ford 540A industrial tractor photo
1981 - 1984
Industrial tractor
540 ↑
Series:340A ← 540A
540B ↓
Transmissions overview
6-speed
8-speed
4-speed torque converter
Transmission
TransmissionManual-reversing
Gears6 forward and 4 reverse
Oil capacity12.7 qts
12.0 L
Speeds
With 16.9x24 rear tires.

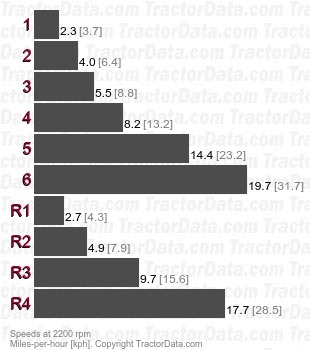

540A Manual-reversing speeds
Transmission
TransmissionManual-shift
Gears8 forward and 2 reverse
Oil capacity12.7 qts
12.0 L
Speeds
With 16.9x24 rear tires.

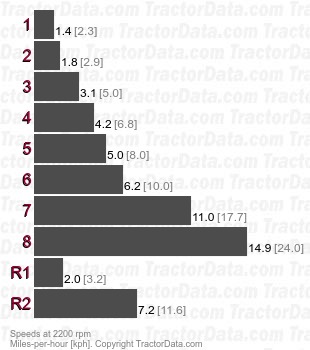

540A Manual-shift speeds
Transmission
Typetorque converter
Gears4 forward and reverse
Oil capacity19 qts
18.0 L
Torque multiplication ratio of 2.78:1. Stall speed of 2,050 RPM.
Speeds
With 16.9x24 rear tires.

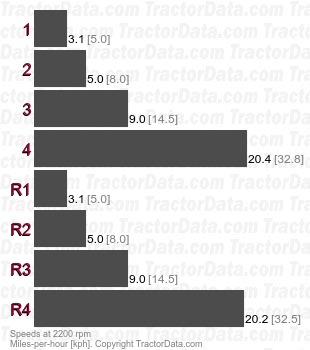

540A torque converter speeds
