Ford 540B Transmission


Ford 540B industrial tractor photo
1984 - 1988
Industrial tractor
540A
Series:340B540B
Transmissions overview
8-speed
6-speed
4-speed
Transmission
TransmissionManual-shift
Gears8 forward and 2 reverse
Oil capacity13 qts
12.3 L
Four speeds, plus reverse, with two ranges.
Speeds
540B equipped with 16.9-24 rear tires.
540B Manual-shift  speeds
Transmission
TransmissionManual-reversing
Gears6 forward and 4 reverse
Oil capacity13 qts
12.3 L
Three forward and two reverse speeds with high and low range.
Speeds
540B equipped with 16.9-24 rear tires.
540B Manual-reversing  speeds
Transmission
TransmissionTorque Converter
Gears4 forward and reverse
Oil capacity19 qts
18.0 L
Four speeds in each direction with torque converter. The torque converter has a 2.78-to-1 torque multiplication ratio and a stall speed of 2050 rpm. Power-take-off (PTO) was not available on the 540B with the torque-converter transmission.

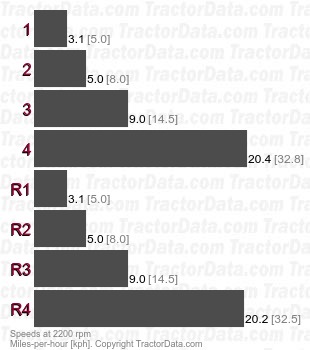

Speeds
540B equipped with 16.9-24 rear tires.
540B Torque Converter  speeds
