J.I. Case 580B Construction King
|
|
| Production | |
| Manufacturer | J.I. Case |
| Industrial tractor | |
| Built in Burlington, Iowa, USA | |
| J.I. Case 580B Engines | |
| J.I. Case 3.1L 4-cyl diesel | |
| J.I. Case 3.1L 4-cyl gasoline | |
| J.I. Case 2.6L 4-cyl gasoline | |
 Engine details ... |
| J.I. Case 580B Transmissions | |
| 8-speed synchronized shuttle | |
| 4-speed power shuttle with torque converter | |
| hydrostatic | |
 Transmission details ... |
| J.I. Case 580B Power | |
| Engine | 50 hp 37.3 kW |
| Mechanical | |
| Two-wheel drive | |
| Steering | hydrostatic power |
| Differental mechanical disc/band brakes | |
| Open operator station. ROPS optional. Cab optional. | |
| Photos | |
 | |

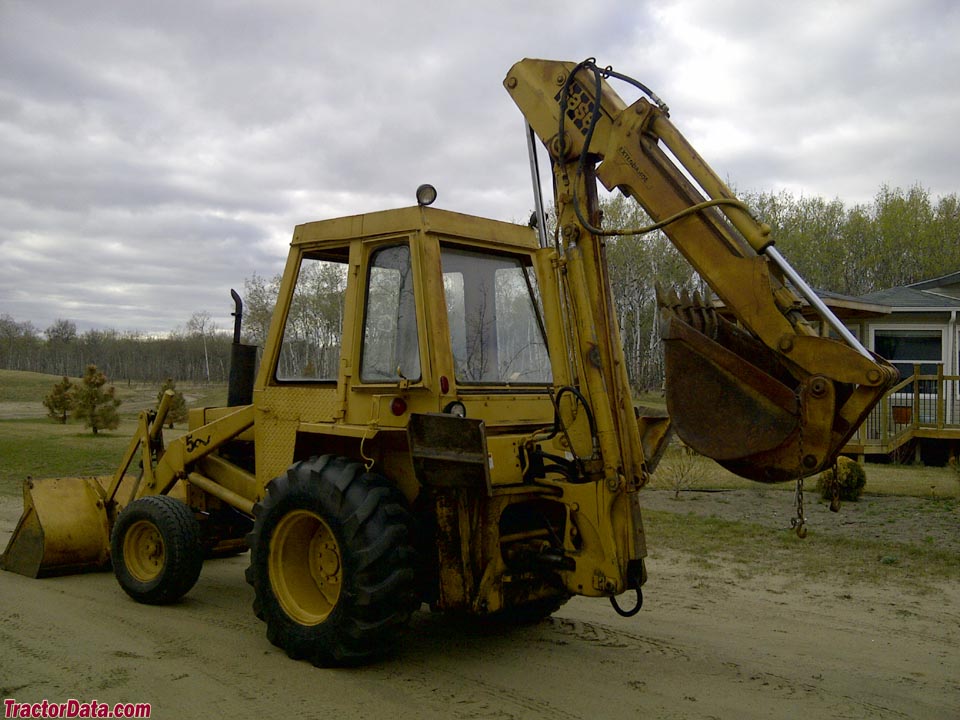

 J.I. Case 580B photos... | |
| Capacity | |
| Fuel | 22 gal 83.3 L |
| Hydraulic system | 11 gal (loader) 41.6 L |
| Hydraulics | |
| Capacity | 11 gal (loader) 41.6 L |
| Pressure | 2200 psi 151.7 bar |
| Total flow | 26 gpm (2100rpm) 98.4 lpm |
| 24 gpm (1900rpm) 90.8 lpm | |
| Tractor hitch | |
| Rear Type | optional |
| Power Take-off (PTO) | |
| Rear PTO | optional |
| Dimensions & Tires | |
| Wheelbase | 78.4 inches (188ci) 199 cm |
| 77.2 inches (159ci) 196 cm | |
| Weight | 4170 to 11000 pounds |
| Front tire | 7.50x16 |
| Rear tire | 14.9x24 |
 Full dimensions and tires ... | |
| J.I. Case 580B attachments | |
| front-end loader | |
| backhoe | |
 Attachment details ... |
| 580B Serial Numbers | |
| 1971 | 8674001 |
| 1972 | 8691901 |
| 1973 | 8712001 |
| 1974 | 8736601 |
| 1975 | 8770001 |
| 1976 | 8797501 |
FAQ: How to read a serial number table. | |

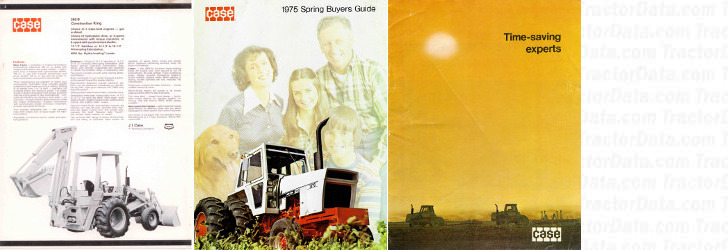

| References | |
 | |
| 580 B Construction King published in 1971, by J.I. Case | |
| 1975 Spring Buyers Guide published by J.I. Case | |
| Time-saving experts published in 1975, by J.I. Case |
