| | 1960 - 1964 |
| low-profile tractor |
|
Series map:
2000 LCG
4000 LCG
48.4hp
62.5hp
| Transmissions overview |

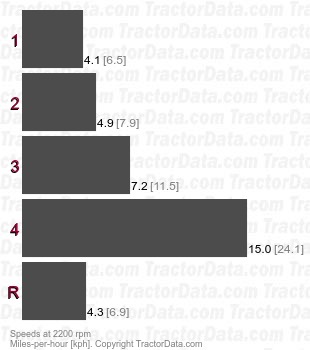

| 4-speed gear |

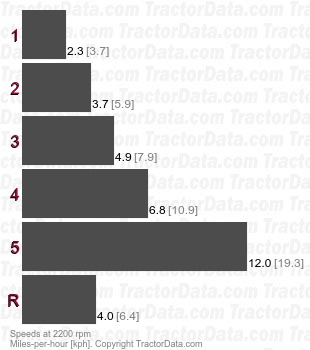

| 5-speed gear |

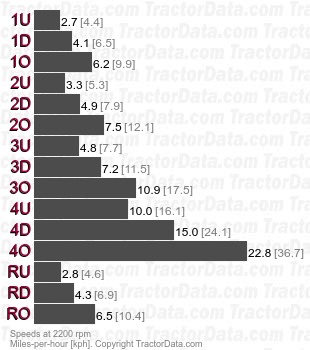

| 12-speed gear |

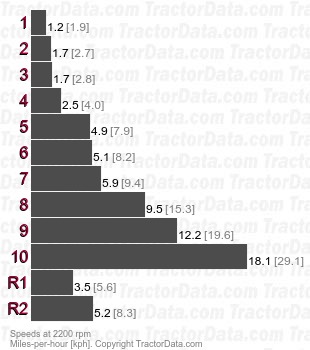

| 10-speed full power shift |
| Transmission |
| Type | gear
|
| Gears | 4 forward and 1 reverse
|
| Clutch | 254mm dry disc
|
| Oil capacity | 6 qts
5.7 L
|
| Speeds |
| With 8.3-24 rear tires. |
|
| Transmission |
| Type | gear
|
| Gears | 5 forward and 1 reverse
|
| Clutch | 254mm dry disc
|
| Speeds |
| With 8.3-24 rear tires. |
|
| Transmission |
| Transmission | Over-Under
|
| Type | gear
|
| Gears | 12 forward and 3 reverse
|
| Speeds |
| With 8.3-24 rear tires. |
|
| Transmission |
| Transmission | Select-O-Speed
|
| Type | full power shift
|
| Gears | 10 forward and 2 reverse
|
| Oil capacity | 11 qts
10.4 L
|
| Speeds |
| With 8.3-24 rear tires. |
|
