Ford 4000 LCG Transmission


Ford 4000 LCG industrial tractor photo
1960 - 1964
low-profile tractor
Series map:
2000 LCG
4000 LCG
48.4hp
62.5hp
Transmissions overview
4-speed gear
5-speed gear
12-speed gear
10-speed full power shift
Transmission
Typegear
Gears4 forward and 1 reverse
Clutch254mm dry disc
Oil capacity6 qts
5.7 L
Speeds
With 8.3-24 rear tires.

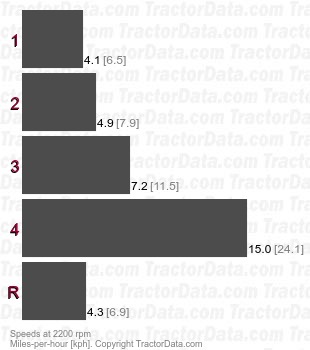

4000 LCG  gear speeds
Transmission
Typegear
Gears5 forward and 1 reverse
Clutch254mm dry disc
Speeds
With 8.3-24 rear tires.

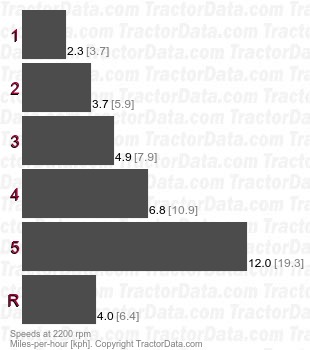

4000 LCG  gear speeds
Transmission
TransmissionOver-Under
Typegear
Gears12 forward and 3 reverse
Speeds
With 8.3-24 rear tires.

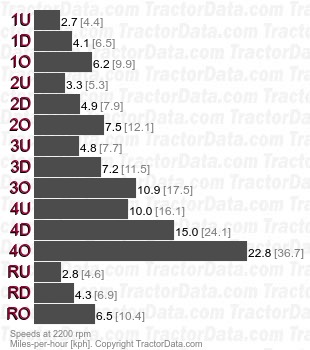

4000 LCG Over-Under gear speeds
Transmission
TransmissionSelect-O-Speed
Typefull power shift
Gears10 forward and 2 reverse
Oil capacity11 qts
10.4 L
Speeds
With 8.3-24 rear tires.

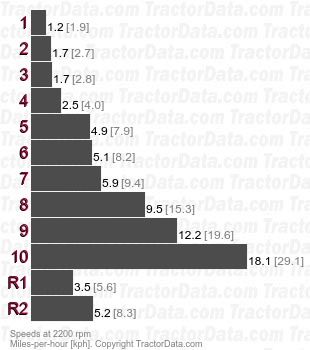

4000 LCG Select-O-Speed full power shift speeds
