Tractors > CaseIH > Magnum 295

CaseIH Magnum 295 Engine



CaseIH Magnum 295 tractor photo
2025 -
Magnum Series
Row-Crop tractor
Series map:
Magnum 265
Magnum 295
Magnum 325
265.0hp
295.0hp
325.0hp
Engine Detail
FPT
Variable-geometry turbocharged diesel
6-cylinder 24-valve
liquid-cooled inline
Displacement531 ci
8.7 L
Bore/Stroke4.606x5.315 inches
117 x 135 mm
EmissionsTier IV
Emission controlselective catalytic reduction (SCR)
Rated Power (gross)295 hp
220.0 kW
Maximum Power (gross)325 hp
242.4 kW
Boost Power351 hp
261.7 kW
Pre-heatingintake heater
 block heater OptOptional
Rated RPM2000
Starterelectric
Starter volts12

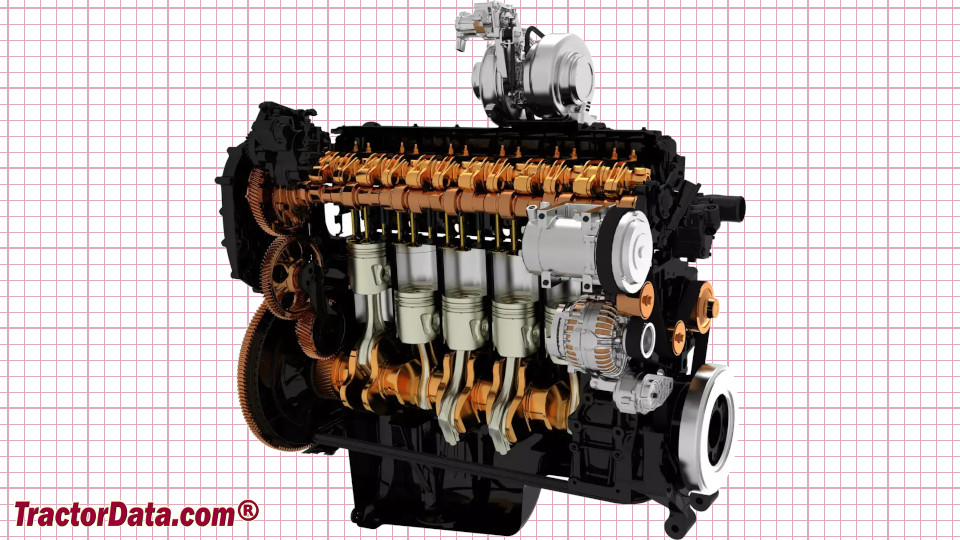

CaseIH Magnum 295 Engine
CaseIH Magnum 295 engine image
