Tractors > CaseIH > Magnum 265

CaseIH Magnum 265 Engine



CaseIH Magnum 265 tractor photo
2025 -
Magnum Series
Row-Crop tractor
Series map:
Magnum 265
Magnum 295
265.0hp
295.0hp
Engine Detail
FPT
Variable-geometry turbocharged diesel
6-cylinder 24-valve
liquid-cooled inline
Displacement531 ci
8.7 L
Bore/Stroke4.606x5.315 inches
117 x 135 mm
EmissionsTier IV
Emission controlselective catalytic reduction (SCR)
Rated Power (gross)265 hp
197.6 kW
Maximum Power (gross)290 hp
216.3 kW
Boost Power320 hp
238.6 kW
Pre-heatingintake heater
 block heater OptOptional
Rated RPM2000
Starterelectric
Starter volts12
CaseIH Magnum 265 Engine

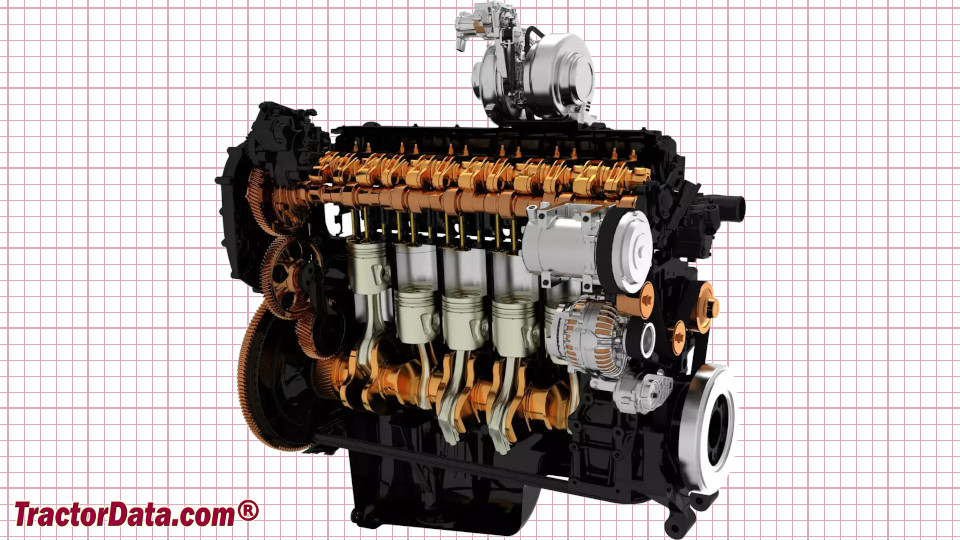

CaseIH Magnum 265 engine image
