Tractors > Bad Boy > 1025

Bad Boy 1025



Bad Boy 1025 tractor photo
2022 -
10 Series
Sub-Compact Utility tractor
TYM built
Series map:
1022
1025
21.5hp
24.6hp
Production
DistributorBad Boy
ManufacturerTYM
Sub-Compact Utility tractor
Bad Boy 1025 Engine
Yanmar 1.3L 3-cyl diesel
Fuel tank5.8 gal
22.0 L
Engine details ...
Bad Boy 1025 Transmission
hydrostatic
Transmission details ...
Bad Boy 1025 Power
Engine (gross)24.6 hp
18.3 kW
PTO (claimed)18.8 hp
14.0 kW
Mechanical
Four-wheel drive
Differential lockmechanical rear
Power steering
Wet disc brakes
Two-post folding ROPS.
Photos
No photos of the Bad Boy 1025 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Typeopen center
Pressure2205 psi
152.0 bar
Pump flow4.2 gpm
15.9 lpm
Total flow7 gpm
26.5 lpm
Steering flow2.8 gpm
10.6 lpm
Steering press.1566 psi
108.0 bar
Tractor hitch
Rear TypeIN
Controlposition control
Rear lift (at ends)1323 lbs
600 kg
Rear lift (at 24"/610mm)450 lbs
204 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540 (1.375)
Engine RPM540@2893
Mid PTOindependent
Mid PTO Type1-inch 15-spline
Engine RPM2000@2875
Dimensions & Tires
Wheelbase57.5 inches
146 cm
Weight1638 lbs
742 kg
Full dimensions and tires ...
Bad Boy 1025 attachments
60" mid-mount mower deck
front-end loader
backhoe
Attachment details ...
1025 Serial Numbers
Location:Serial number decal on the right side of the tractor frame, above the front axle.
Electrical
Groundnegative
Charging systemalternator
Charging amps40
Battery CCA500
Battery volts12
References

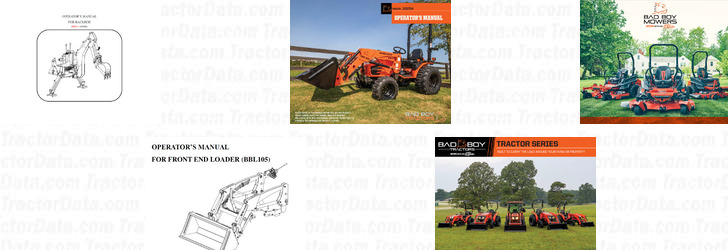

1025 references literature
Operator's Manual Model BBH105 Backhoe published in 2022
Operator's Manual Model BBL105 Front End Loader published in 2022
Operator's Manual Model 1025H published in 2022
Tractor Series published in 2023, by Bad Boy
Mow with an Attitude published in 2024, by Bad Boy
