| | 2022 - |
| 10 Series | | Sub-Compact Utility tractor | | TYM built |
|
Series map:
1022
1025
21.5hp
24.6hp
| Engine Detail |
| Yanmar 3TNV80F |
| diesel |
| 3-cylinder |
| liquid-cooled inline |
| Displacement | 77.3 ci
1.3 L
|
| Bore/Stroke | 3.15x3.31 inches
80 x 84 mm
|
| Power (gross) | 24.6 hp
18.3 kW
|
| Fuel system | indirect injection
|
| Air cleaner | dry
|
| Compression | 23:1
|
| Rated RPM | 3000
|
| Idle RPM | 1350-3235
|
| Starter | electric
|
| Starter volts | 12
|
| Coolant capacity | 3.8 qts
3.6 L
|

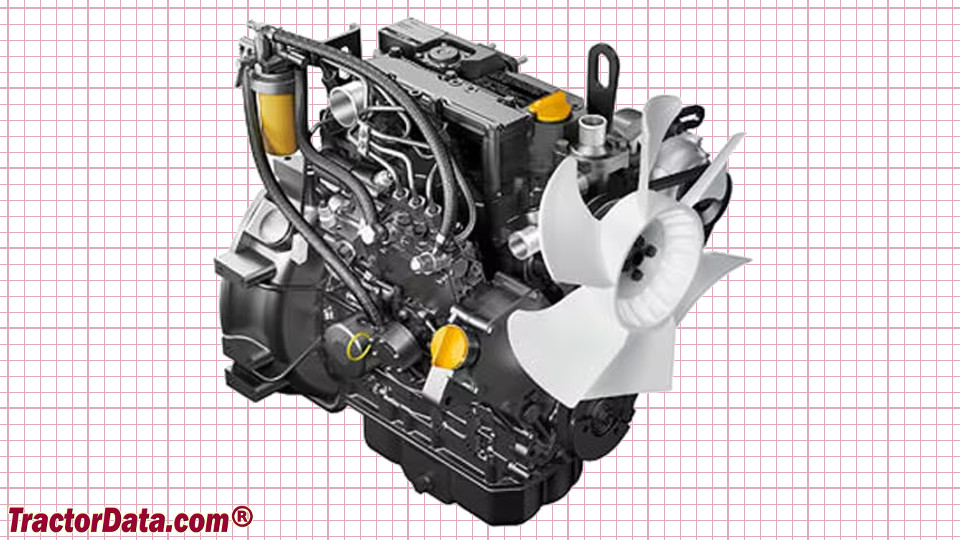

| Bad Boy 1025 Engine |
 |
