Tractors > Bad Boy > 1022

Bad Boy 1022 Engine



Bad Boy 1022 tractor photo
2021 -
10 Series
Sub-Compact Utility tractor
TYM built
Series map:
1022
1025
21.5hp
24.6hp
Engine Detail
Yanmar 3TNM74F
diesel
3-cylinder
liquid-cooled inline
Displacement60.6 ci
1.0 L
Bore/Stroke2.91x3.03 inches
74 x 77 mm
Power (gross)21.5 hp
16.0 kW
Fuel systemindirect injection
Air cleanerdry
Rated RPM3200
Starterelectric
Starter volts12
Oil capacity2.11 qts
2.0 L
Coolant capacity3.7 qts
3.5 L

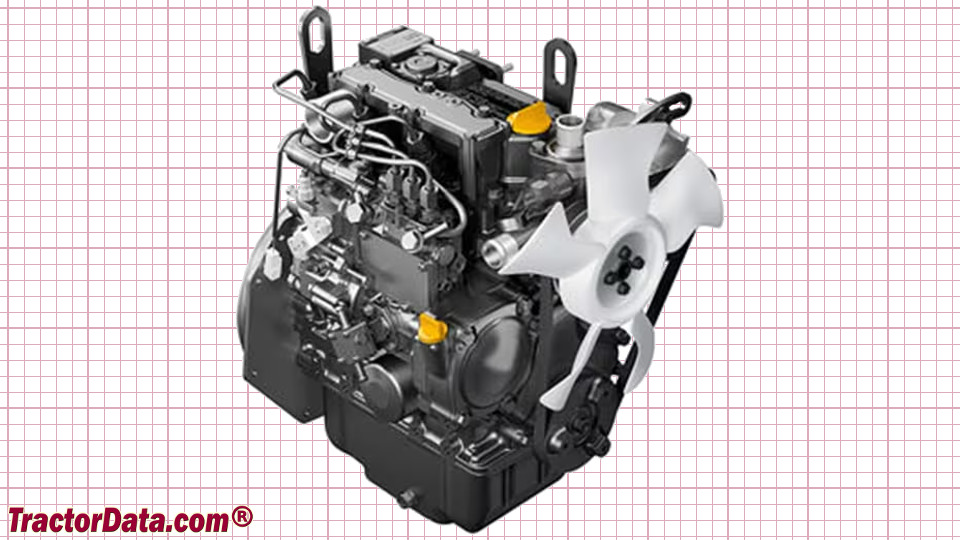

Bad Boy 1022 Engine
Bad Boy 1022 engine image
