Tractors > John Deere > 5130M

John Deere 5130M

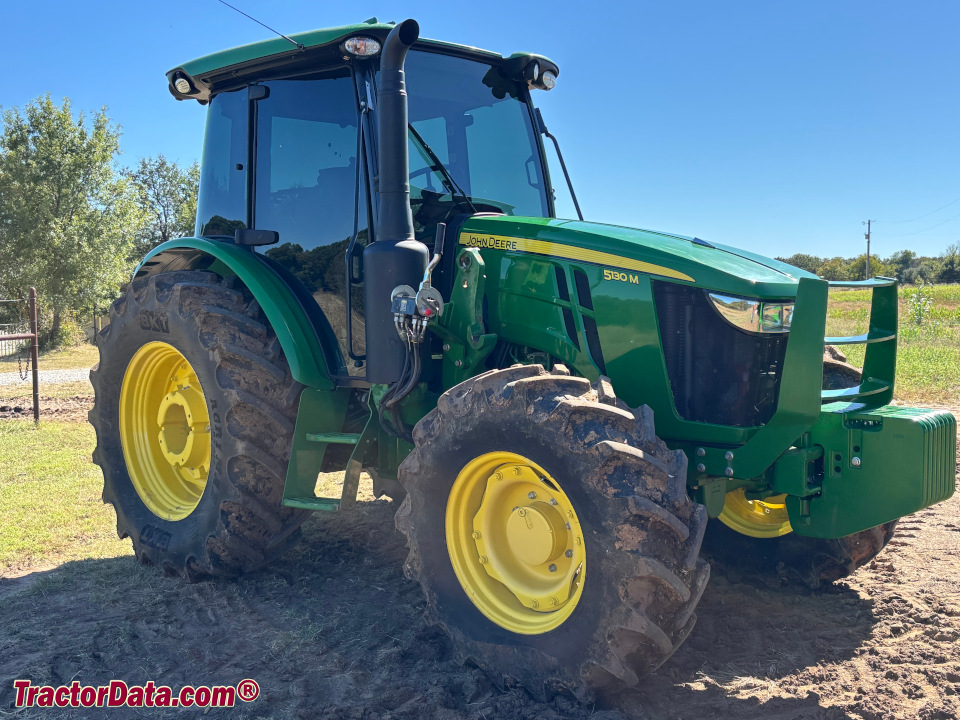

John Deere 5130M tractor photo
2022 -
5M Series
Utility tractor
Series map:
5120M
5130M
120.0hp
130.0hp
Production
ManufacturerJohn Deere
Utility tractor
Built in Pune, India
Original price was $110,745 in 2023
John Deere 5130M Engine
John Deere 4.5L 4-cyl diesel
Fuel tank43.7 gal
165.4 L
Exhaust fluid (DEF)3.17 gal
12.0 L
Engine details ...
John Deere 5130M Transmissions
16-speed 4-speed power shift
32-speed 8-speed power shift
Transmission details ...
John Deere 5130M Power
Engine130 hp
96.9 kW
PTO (claimed)115 hp
85.8 kW
Mechanical
Four-wheel drive
Differential lockelectro-hydraulic rear
Power steering
Cab standard with air-conditioning.
Photos
No photos of the John Deere 5130M are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Typeopen center
Rear valves2 or 3
Mid valves2 or 3
Pump flow25.6 gpm
96.9 lpm
SCV flow19.3 gpm
73.1 lpm
Tractor hitch
Rear TypeII/I
Controlposition control and lower-link draft sensing
Rear lift6975 lbs
3163 kg
 7868 lbsOptOptional
3568 kg
Front HitchII/I
Front lift4257 lbs
1930 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchelectro-hydraulic
Rear PTO Type540 (1.375)
 540/1000 (1.375)OptOptional
Engine RPM540@2100
 540E@1645
 1000@2100
Dimensions & Tires
Wheelbase92.5 inches
234 cm
Weight9185 lbs
4166 kg
Front tire12.4R24
Rear tire18.4R30
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
Charging amps120
 200 OptOptional
Battery volts12
References
5130M references literature
5M Tractors published in 2022, by John Deere
