Kubota L3902
|
|
| Production | |
| Manufacturer | Kubota |
| Compact Utility tractor | |
| Original price was $25,693 in 2023 | |
| Kubota L3902 Engine | |
| Kubota 1.8L 3-cyl diesel | |
| Fuel tank | 11.1 gal 42.0 L |
 Engine details ... | |
| Kubota L3902 Transmissions | |
| 8-speed mechanical shuttle | |
| hydrostatic | |
 Transmission details ... |
| Kubota L3902 Power | |
| Engine (gross) | 37.5 hp 28.0 kW |
| Engine (net) | 36.3 hp 27.1 kW |
| Gear PTO (claimed) | 32.1 hp 23.9 kW |
| Hydro PTO (claimed) | 30.3 hp 22.6 kW |
| Mechanical | |
| Four-wheel drive | |
| Power steering | |
| Mechanical wet disc brakes | |
| Two-post folding ROPS. |

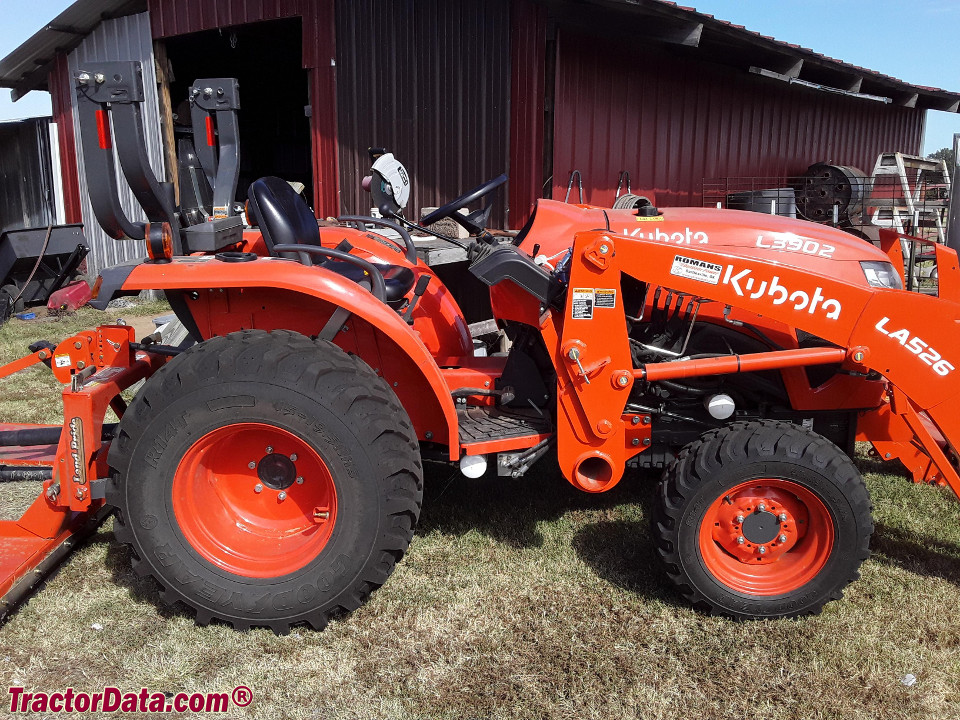

| Photos | |
 | |
 Kubota L3902 photos... | |
| Hydraulics | |
| Type | open center |
| Pump flow | 6.3 gpm 23.8 lpm |
| Steering flow | 3.8 gpm 14.4 lpm |
| Tractor hitch | |
| Rear Type | I |
| Control | position control |
| Rear lift (at ends) | 1998 lbs 906 kg |
| Rear lift (at 24"/610mm) | 1435 lbs 650 kg |
| Power Take-off (PTO) | |
| Gear Rear PTO | live |
| Hydro Rear PTO | independent |
| Clutch | dry disc (gear) |
| Rear PTO Type | 540 (1.375) |
| Engine RPM | 540@2425 (gear) |
| 540@2470 (hydro) | |
| Dimensions & Tires | |
| Wheelbase | 63.4 inches 161 cm |
| Weight | 2767 to 2778 pounds |
| Front tire | 7.2-16 |
| Rear tire | 11.2-24 |
 Full dimensions and tires ... | |
| Kubota L3902 attachments | |
| front-end loader | |
| backhoe | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 45 |
| Charging volts | 12 |
| Gear Battery CCA | 580 |
| Hydro Battery CCA | 600 |
| Battery volts | 12 |
| References | |
 | |
| L02 Series published in 2022, by Kubota |
