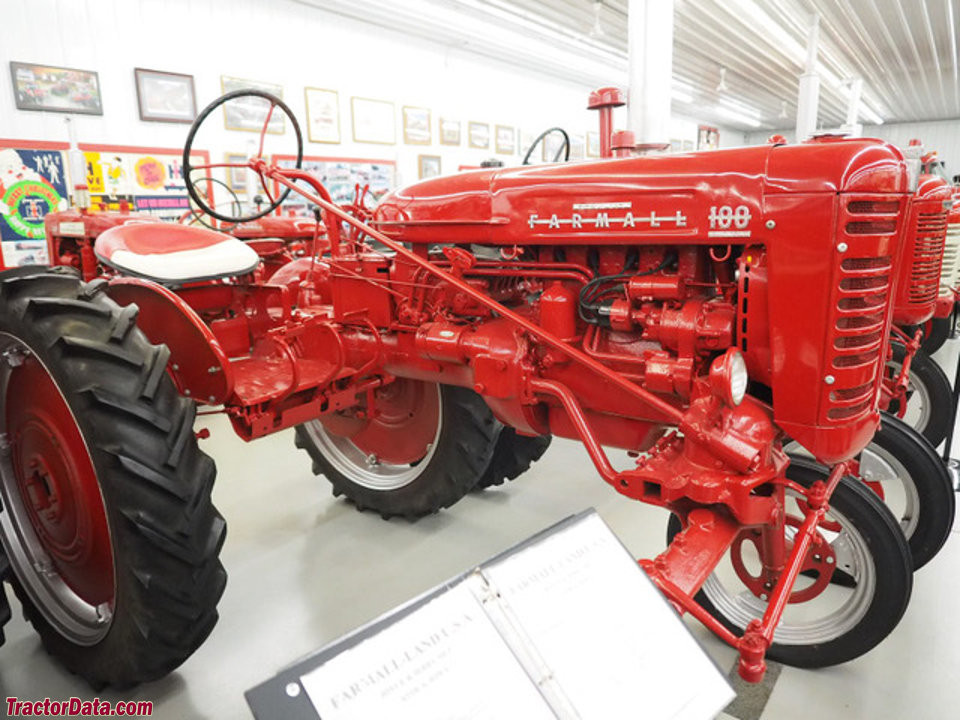

Farmall 100 Hi-Clear
|
|
| Production | |
| Manufacturer | Farmall (a part of International Harvester) |
| Row-Crop tractor | |
| Built in Louisville, Kentucky, USA | |
| Total built | 1,057 |
| Variants | |
| IH 100 | utility tractor |
| Farmall 100 | row-crop tractor |
| 100 Hi-Clear | high crop tractor |
| Farmall 100 Hi-Clear Engine | |
| International Harvester 2.0L 4-cyl gasoline | |
| Fuel tank | 11 gal 41.6 L |
 Engine details ... | |
| Farmall 100 Hi-Clear Power | |
| Plows | 1 |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Contracting band brakes | |
| Open operator station. |
| Hydraulics | |
| Type | open center |
| Tractor hitch | |
| Type | IH Fast Hitch |
| Power Take-off (PTO) | |
| Rear PTO Type | 540 |
| Engine RPM | 541@1400 |
| Dimensions & Tires | |
| Wheelbase | 71.625 inches 181 cm |
| Weight | 2825 lbs 1281 kg |
| Front tire | 4.00-19 |
| Rear tire | 9-36 |
 Full dimensions and tires ... | |
| 100 Hi-Clear Serial Numbers | |
| 1954 | 501 |
| 1955 | 1720 |
| 1956 | 12895 |
| Final | 18940 |
FAQ: How to read a serial number table. | |
| Belt Pulley | |
| Diameter | 8.5 inches 21 cm |
| Width | 6 inches 15 cm |
| RPM | 1157 |
| Speed | 2574 ft/min 784.56 meters/min |
| References | |
 | |
| Farmall 100 with Fast-Hitch published in 1956, by International Harvester |
