| | 1954 - 1956 |
| Row-Crop tractor |
|
| Engine Detail |
| International Harvester C-123 |
| gasoline |
| 4-cylinder |
| liquid-cooled inline |
| Displacement | 122.7 ci
2.0 L
|
| Bore/Stroke | 3.125x4.00 inches
79 x 102 mm
|
| Air cleaner | oil bath
|
| Compression | 6.5:1
|
| Rated RPM | 1400
|
| Idle RPM | 900-1400
|
| Firing order | 1-3-4-2
|
| Starter volts | 6
|
| Oil capacity | 5 qts
4.7 L
|

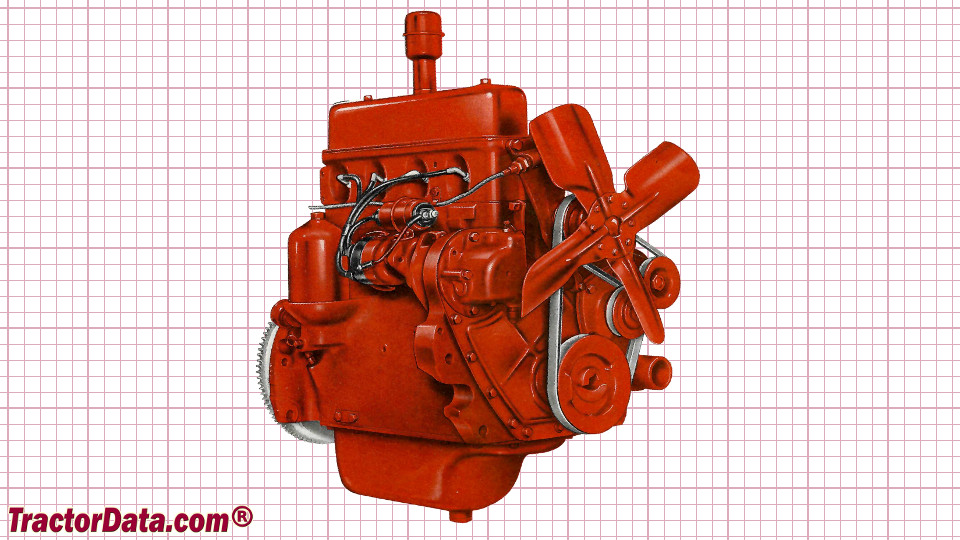

| Farmall 100 Hi-Clear Engine |
 |
