SAME Diamond 230
|
|
| Production | |
| Manufacturer | SAME |
| Row-Crop tractor | |
| SAME Diamond 230 Engine | |
| Deutz 7.1L 6-cyl diesel | |
| Fuel tank | 95.1 gal 360.0 L |
| 145.3 galOptOptional 550.0 L | |
 Engine details ... | |
| SAME Diamond 230 Transmission | |
| 40-speed four-speed power shift | |
 Transmission details ... |
| SAME Diamond 230 Power | |
| Engine (gross) | 239 hp 178.2 kW |
| Engine (max) | 247 hp 184.2 kW |
| Mechanical | |
| Four-wheel drive | |
| Differential lock | electro-hydraulic front and rear |
| Power steering | |
| Hydraulic wet disc brakes | |
| Trailer brakes | pneumatic |
| hydraulic | |
| Cab standard with air-conditioning. | |

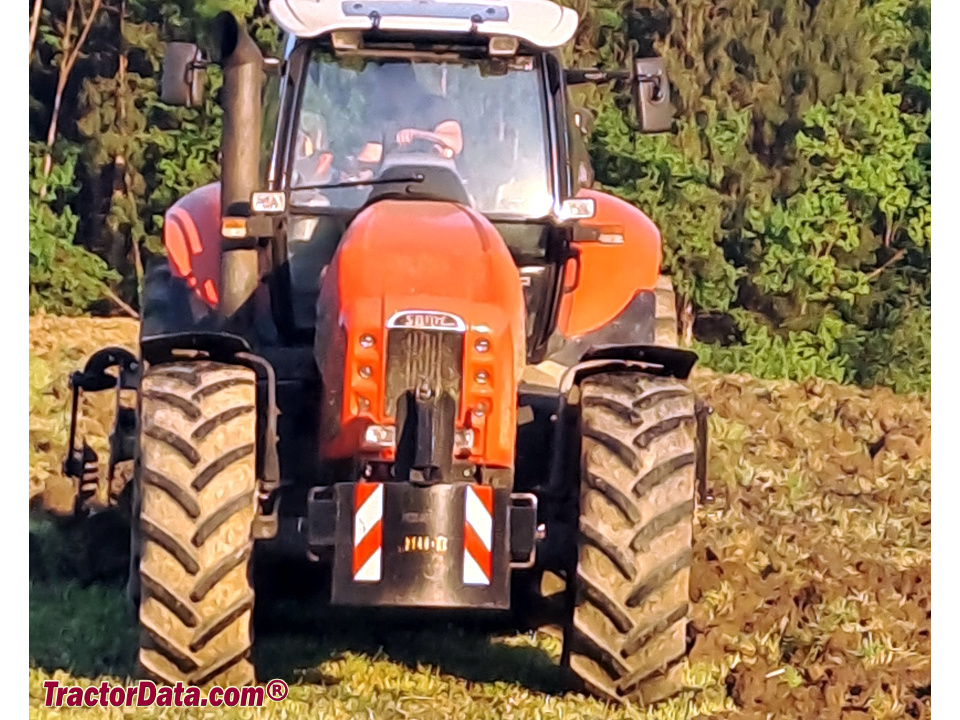

| Photos | |
 | |
 SAME Diamond 230 photos... | |
| Hydraulics | |
| Type | load sensing |
| Valves | 4 |
| Pump flow | 31.7 gpm 120.0 lpm |
| Tractor hitch | |
| Rear lift | 23149 lbs 10500 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Clutch | electro-hydraulic wet disc |
| Rear PTO Type | 540E/1000 |
| Engine RPM | 540E@1630 |
| Front PTO | independent |
| Clutch | electro-hydraulic wet disc |
| Front PTO Type | 1000 |
| Dimensions & Tires | |
| Wheelbase | 121.6 inches 308 cm |
| Weight | 18541 lbs 8410 kg |
| Front tire | 600/65R38 |
| Rear tire | 710/70R42 |
 Full dimensions and tires ... | |
| References | |
 | |
| Diamond 230 - 270 published in 2010, by SAME |
