John Deere 9R 440



John Deere 9R 440 tractor photo
2021 -
9R Series
Four-wheel Drive (4WD) tractor
Series map:
9R 390
9R 440
9R 490
384.9hp
434.5hp
482.8hp
Production
ManufacturerJohn Deere
Four-wheel Drive (4WD) tractor
Built in Waterloo, Iowa, USA
Original price was $559,017 in 2023
John Deere 9R 440 Engine
John Deere 13.6L 6-cyl diesel
Fuel tank400 gal
1514.0 L
Exhaust fluid (DEF)31.7 gal
120.0 L
Engine details ...
John Deere 9R 440 Transmission
18-speed full power shift
Transmission details ...
John Deere 9R 440 Power
Engine (gross)434.5 hp
324.0 kW
Engine (max)477.4 hp
356.0 kW
PTO (claimed)335 hp
249.8 kW
Mechanical
Four-wheel drive
Final drivesinboard planetary
Differential lockelectro-hydraulic front and rear
Articulated power steering
Hydraulic wet disc brakes
Cab standard with air-conditioning.
Photos
No photos of the John Deere 9R 440 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Typeclosed center pressure/flow compensated
Pressure2900 psi
200.0 bar
Valves4 to 8
Pump flow55 gpm
208.2 lpm
 110 gpmOptOptional
416.4 lpm
SCV flow35 gpm
132.5 lpm
 42 gpm*Optional, 3/4 inch coupler
159.0 lpm
Tractor hitch
Rear TypeIVN/IV
Rear lift (at 24"/610mm)15000 lbs
6804 kg
 20000 lbs
9072 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type1000 (1.75)
Dimensions & Tires
Wheelbase154 inches
391 cm
Weight45980 lbs
20856 kg
Front tire710/70R42
Rear tire710/70R42
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
Charging amps250
 330 OptOptional
Batteries3
Battery volts12
References

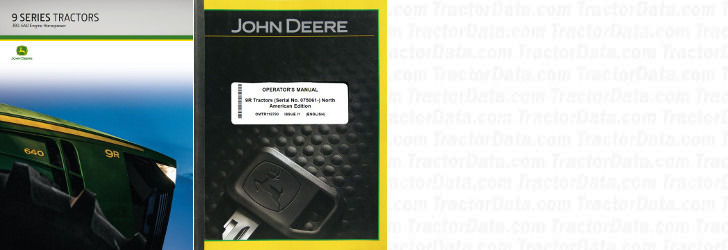

9R 440 references literature
9 Series Tractors published in 2022, by John Deere
Operator's Manual 9R Tractors (OMTR118780) published in 2021
