Tractors > CaseIH > CS 150

CaseIH CS 150 Engine



CaseIH CS 150 tractor photo
1997 - 2003
CS Series
Row-Crop tractor
Series map:
CS 130
CS 150
91.9kw
106.6kw
Engine Detail
Sisu 620.93
turbocharged diesel
6-cylinder
liquid-cooled
Displacement402.8 ci
6.6 L
Bore/Stroke4.25x4.72 inches
108 x 120 mm
Rated Power (net)143 hp
106.6 kW
Maximum Power (net)147.9 hp
110.3 kW
Rated RPM2300
Operating RPM1850-2300
Torque427.8 lb-ft
580.1 Nm
Torque RPM1500
Oil capacity21.1 qts
20.0 L
Oil change250 h
CaseIH CS 150 Engine

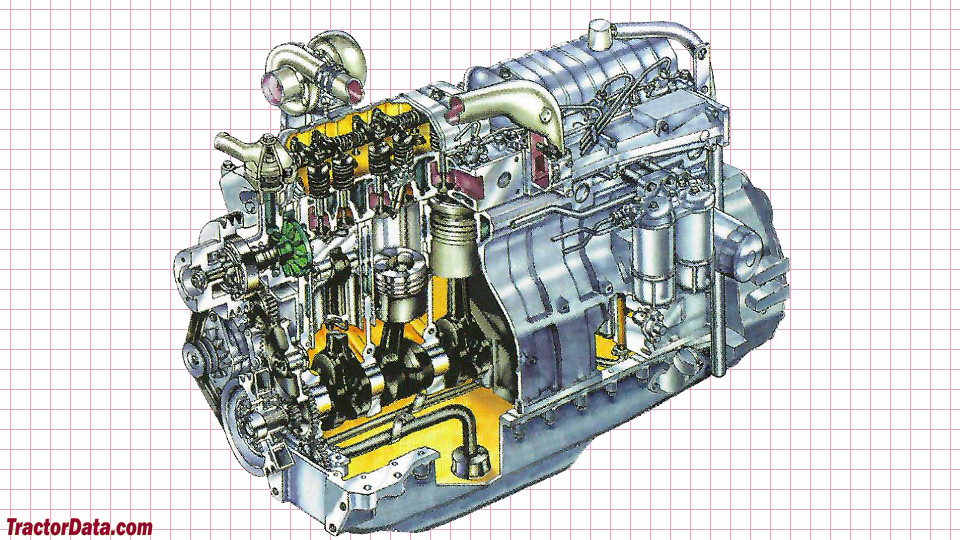

CaseIH CS 150 engine image
