Tractors > CaseIH > CS 130

CaseIH CS 130 Engine



CaseIH CS 130 tractor photo
1997 - 2003
CS Series
Row-Crop tractor
Series map:
CS 120
CS 130
CS 150
84.6kw
91.9kw
106.6kw
Engine Detail
Sisu 620.92
turbocharged diesel
6-cylinder
liquid-cooled
Displacement402.8 ci
6.6 L
Bore/Stroke4.25x4.72 inches
108 x 120 mm
Rated Power (net)123.3 hp
91.9 kW
Maximum Power (net)128.2 hp
95.6 kW
Rated RPM2300
Operating RPM1700-2300
Torque373.2 lb-ft
506.1 Nm
Torque RPM1500
Oil capacity21.1 qts
20.0 L
Oil change250 h

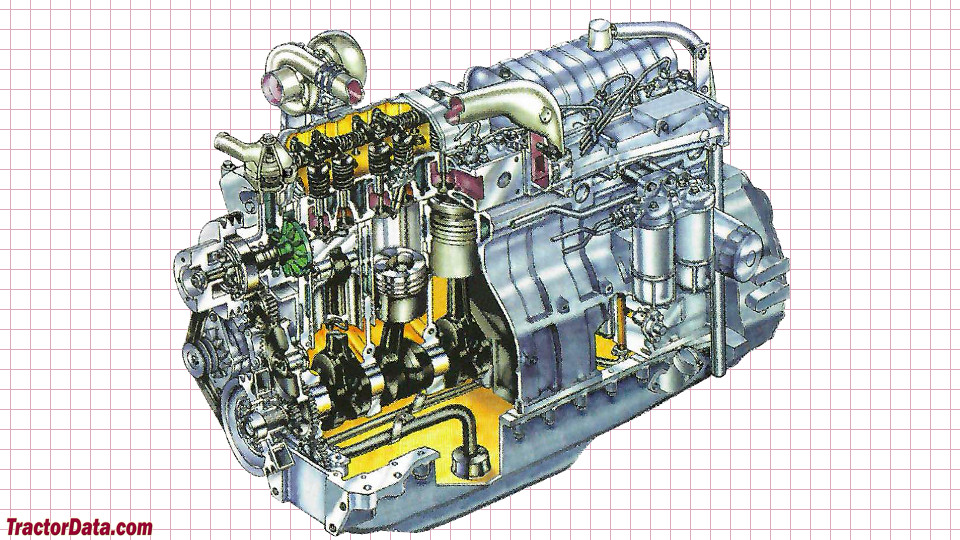

CaseIH CS 130 Engine
CaseIH CS 130 engine image
