LS MT357
|
|
| Production | |
| Manufacturer | LS |
| Compact Utility tractor | |
| LS MT357 Engine | |
| LS 1.9L 3-cyl diesel | |
| ROPS Fuel tank | 10.6 gal 40.1 L |
| Cab Fuel tank | 12.4 gal 46.9 L |
 Engine details ... | |
| LS MT357 Transmissions | |
| 16-speed synchro shuttle | |
| hydrostatic | |
 Transmission details ... |
| LS MT357 Power | |
| Engine (gross) | 57 hp 42.5 kW |
| Hydro PTO (claimed) | 45.6 hp 34.0 kW |
| Shuttle PTO (claimed) | 48.4 hp 36.1 kW |
| Mechanical | |
| Four-wheel drive | |
| Power steering | |
| Wet disc brakes | |
| Two-post folding ROPS. Cab optional. |
| Photos | |
 | |

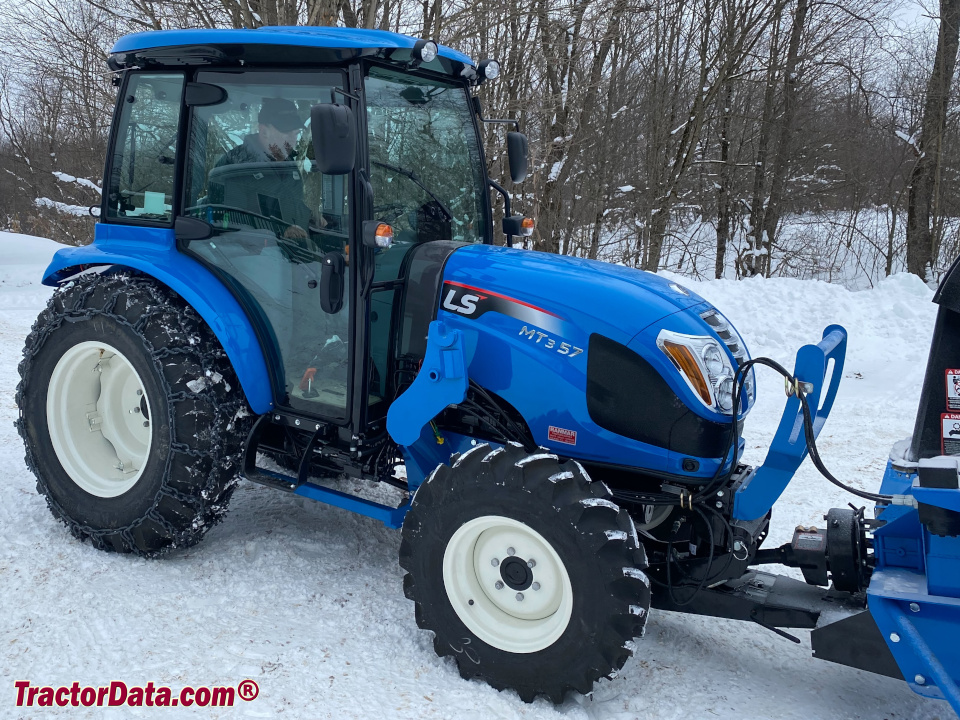

 LS MT357 photos... | |
| Hydraulics | |
| Type | open center |
| Pressure | 2466 psi 170.0 bar |
| Valves | 3 |
| Pump flow | 8.2 gpm 31.0 lpm |
| ROPS shuttle Total flow | 12.3 gpm 46.6 lpm |
| ROPS hydro Total flow | 14.3 gpm 54.1 lpm |
| Cab hydro Total flow | 15 gpm 56.8 lpm |
| ROPS shuttle Steering flow | 4.1 gpm 15.5 lpm |
| ROPS hydro Steering flow | 5.5 gpm 20.8 lpm |
| Cab hydro Steering flow | 6.8 gpm 25.7 lpm |
| Steering press. | 2062 psi 142.2 bar |
| Tractor hitch | |
| Rear Type | II |
| Control | position and draft control |
| Rear lift (at ends) | 2755 lbs 1249 kg |
| Rear lift (at 24"/610mm) | 2469 lbs 1119 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540 (1.375) |
| Engine RPM | 540@2409 |
| Mid PTO | independent OptOptional |
| Mid PTO Type | 2000 |
| Engine RPM | 2000@2562 |
| Dimensions & Tires | |
| Wheelbase | 73.2 inches 185 cm |
| Weight | 3869 lbs 1754 kg |
| Front tire | 9.5-16 |
| Rear tire | 13.6-24 |
 Full dimensions and tires ... | |
| LS MT357 attachments | |
| front-end loader | |
| backhoe | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 90 |
| Charging volts | 12 |
| Battery volts | 12 |
| References | |
 | |
| MT3 Series published in 2020, by LS |
