Tractors > CaseIH > Vestrum 130

CaseIH Vestrum 130

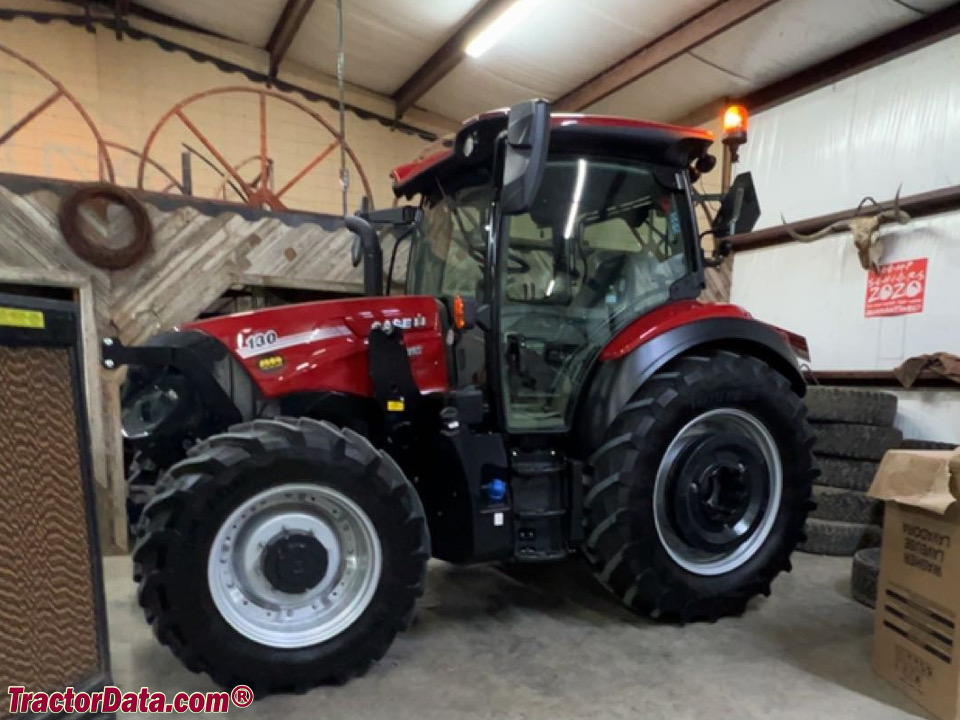

CaseIH Vestrum 130 tractor photo
2020 -
Vestrum Series
Utility tractor
Series map:
Vestrum 120
Vestrum 130
118.4hp
128.2hp
Production
ManufacturerCaseIH (a part of CNH)
Utility tractor
Original price$117,744 (2020 ActiveDrive8 )
$142,716 (2020 CVT )
Variants
T5.140similar New Holland model
CaseIH Vestrum 130 Engine
FPT 4.5L 4-cyl diesel
Fuel tank47.5 gal
179.8 L
Exhaust fluid (DEF)5 gal
18.9 L
Engine details ...
CaseIH Vestrum 130 Transmissions
continuously-variable transmission
24-speed 8-speed power shift
Transmission details ...
CaseIH Vestrum 130 Power
Engine (gross)128.2 hp
95.6 kW
Engine (max)138.1 hp
103.0 kW
PTO (claimed)111 hp
82.8 kW
Mechanical
Four-wheel drive
Final drivesinboard planetary
Differential lockelectro-hydraulic rear
Power steering
Hydraulic wet disc brakes
Cab standard with air-conditioning.
Photos
No photos of the CaseIH Vestrum 130 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Typeclosed center load-sensing
Pressure2900 psi
200.0 bar
Rear valves4 OptOptional
Mid valves3 OptOptional
Pump flow29.1 gpm
110.1 lpm
Tractor hitch
Rear TypeII
 IIIN OptOptional
Controlelectronic lower-link draft sensing
Rear lift (at 24"/610mm)9259 lbs
4199 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchelectro-hydraulic wet disc
Rear PTO Type540/1000 (1.375)
Engine RPM540@1969
 540E@1546
 1000@1893
Front PTOindependent OptOptional
Front PTO Type1000 (1.375)
Dimensions & Tires
Wheelbase98 inches
248 cm
Weight12900 lbs
5851 kg
Front tire380/85R24
Rear tire460/85R34
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
Charging amps200
Battery volts12
References
Vestrum 130 references literature
Vestrum published in 2020, by CaseIH
Vestrum published in 2023, by CaseIH
