Tractors > Massey Ferguson > 451

Massey Ferguson 451



Massey Ferguson 451 tractor photo
2002 - 2006
Model year
400 Series
Utility tractor
Series map:
451
471
48.0hp
65.0hp
Production
ManufacturerMassey Ferguson (a part of AGCO)
Utility tractor
Built in Brazil
Massey Ferguson 451 Engine
Perkins 2.7L 3-cyl diesel
Engine details ...
Massey Ferguson 451 Transmissions
8-speed gear
8-speed partially synchronized
Transmission details ...
Massey Ferguson 451 Power
Engine (net)48 hp
35.8 kW
PTO (claimed)45 hp
33.6 kW
Mechanical
Two- or four-wheel drive
Power steering
Wet disc brakes
Two-post foldable ROPS.
Photos

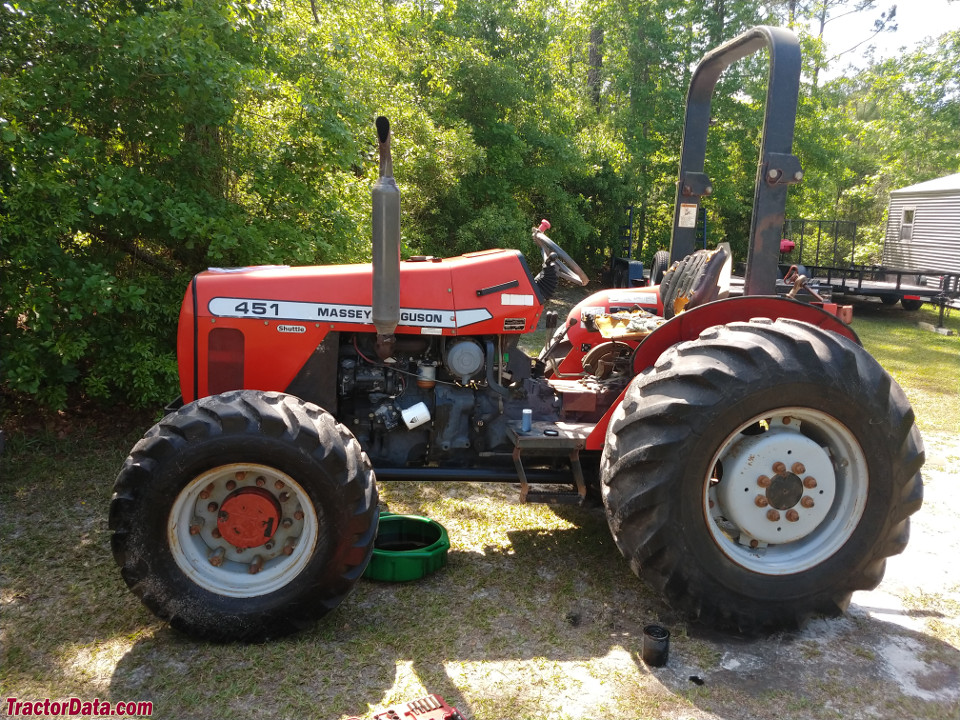

Massey Ferguson 451
Massey Ferguson 451 photos...
Capacity
Fuel15.3 gal
57.9 L
Hydraulic system11.1 gal
42.0 L
Hydraulics
Typeopen center
Capacity11.1 gal
42.0 L
Pressure2500 psi
172.4 bar
Valves2
Pump flow9.5 gpm
36.0 lpm
Steering press.1740 psi
120.0 bar
Tractor hitch
Rear TypeII/I
Controlposition and draft control
Rear lift (at ends)3748 lbs
1700 kg
Power Take-off (PTO)
Rear PTOlive
 independent OptOptional
Clutch254mm mechanical dry disc
 hydraulic wet disc *With independent PTO option.
Rear PTO Type540 (1.375)
Engine RPM540@1908 (gear)
 540@1789 (shuttle)
Dimensions & Tires
2WD Wheelbase78.3 inches
198 cm
4WD Wheelbase78.7 inches
199 cm
Weight4738 to 5238 pounds
Front tire7.50-16
2WD Rear tire14.-28
Full dimensions and tires ...
Massey Ferguson 451 attachments
front-end loader
Attachment details ...

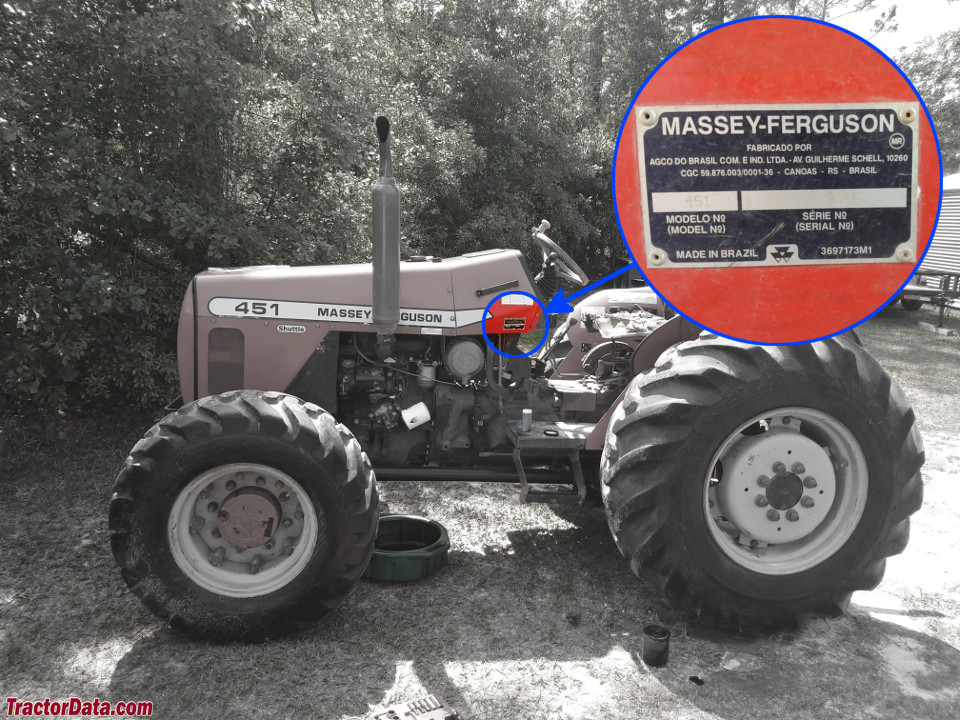

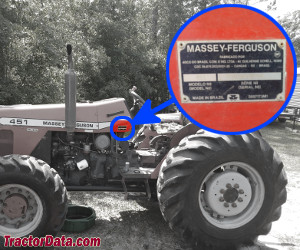

451 Serial Number Location
Massey Ferguson 451 serial number location
Serial number on the left side of the tractor, below the dashboard.
Electrical
Groundnegative
Charging systemalternator
Charging amps35
Battery CCA750
Battery volts12
References
451 references literature
MF Loaders for Compact & Agricultural Tractors published in 2003, by Massey Ferguson
MF 400 Series Tractor published in 2003, by Massey Ferguson
