Fiat 70-65
|
|
| Production | |
| Manufacturer | Fiat |
| Agricultural Crawler tractor | |
| Fiat 70-65 Engine | |
| Fiat 3.6L 4-cyl diesel | |
 Engine details ... |
| Fiat 70-65 Transmissions | |
| 8-speed gear | |
| 8-speed | |
| 16-speed | |
 Transmission details ... |
| Fiat 70-65 Power | |
| Engine | 70 hp 52.2 kW |
| Mechanical | |
| Drive | crawler |
| Band brakes | |
| Open operator station. ROPS available. | |

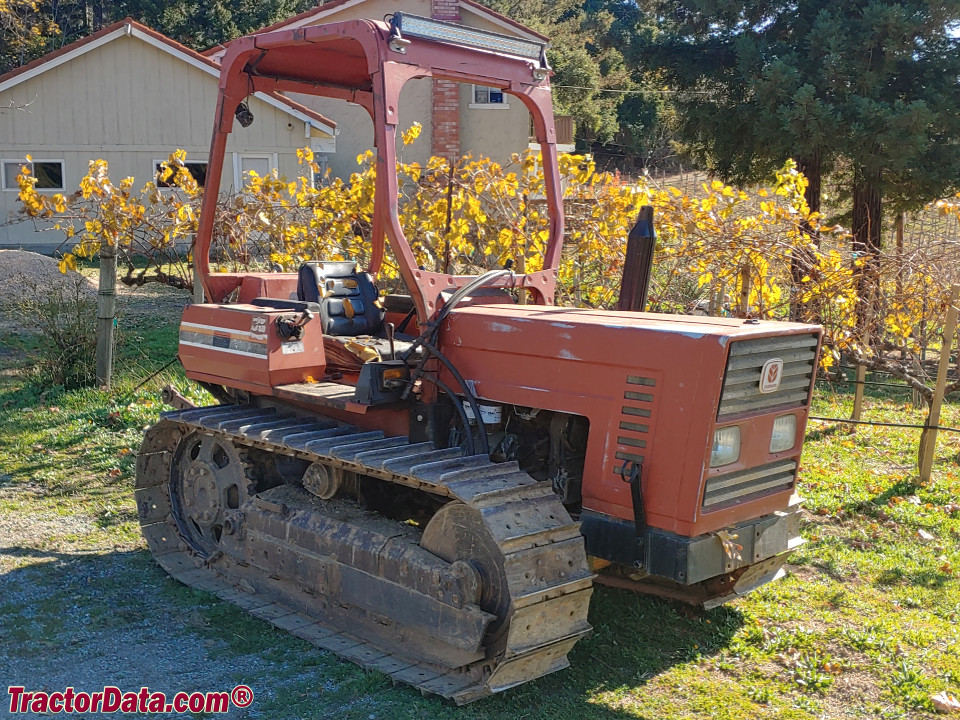

| Photos | |
 | |
 Fiat 70-65 photos... | |
| Hydraulics | |
| Type | open center |
| Pressure | 2460 psi 169.6 bar |
| Valves | 1 to 3 |
| Pump flow | 9 gpm 34.1 lpm |
| Tractor hitch | |
| Rear Type | II/I |
| Control | position and draft control |
| Power Take-off (PTO) | |
| Rear PTO Type | 540 (1.375) |
| Engine RPM | 540@2197 |
| Dimensions & Tracks | |
| Wheelbase | 62.4 inches 158 cm |
| Weight | 8157 lbs 3700 kg |
| 12.2-inch tracks | |
 Full dimensions and tracks ... | |
| Electrical | |
| Charging system | alternator |
| Charging amps | 33 |
| References | |
 | |
| 70-65 80-65 (603.64.073.00R2) |
