John Deere 5100E Transmission


John Deere 5100E tractor photo
2013 - 2024
Model year
5E Series
Utility tractor
Series map:
5090E
5100E
90.0hp
100.0hp
Transmission options
12-speed
24-speed
Transmission
TransmissionPowrReverser
Gears12 forward and reverse
Oil capacity46 qts
43.5 L
Four gears (1-4) in three ranges (A-C) with left-hand reverser lever. Gear shifts are synchronized, using the foot clutch. Tractor must be stopped, and clutch used, to shift range. Power shuttle allows direction change without the clutch.

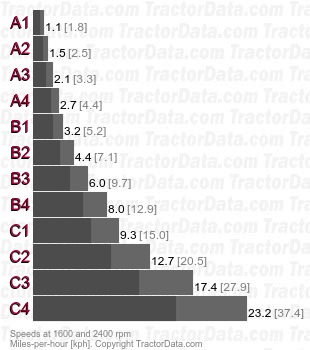

Speeds
With 18.4R30 rear tires. Reverse speeds are about 10% faster than forward speeds.
5100E PowrReverser  speeds
Transmission
TransmissionPowrReverser Plus
Gears24 forward and 12 reverse
Oil capacity46 qts
43.5 L
Four gears (1-4) in three ranges (A-C) with high/low power shift and left-hand reverser lever. Push-button power shift doubles the number of forward speeds. Gear shifts are synchronized, using the foot clutch. Tractor must be stopped, and clutch used, to shift range. Power shuttle allows direction change without the clutch.

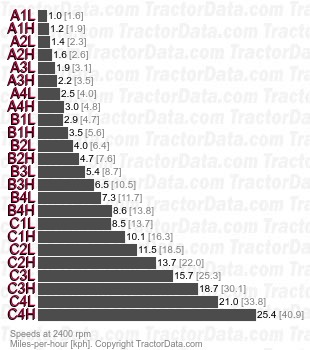

Speeds
Reverse speeds are about 10% faster the forward low speed.
5100E PowrReverser Plus  speeds
