John Deere 5100E Engine


John Deere 5100E tractor photo
2013 - 2022
Model year
5E Series
Utility tractor
Series:5090E5100E
Engine Detail
John Deere FJDXL04.5305
turbocharged diesel
4-cylinder
liquid-cooled inline
Displacement:276 ci
4.5 L
Bore/Stroke:4.19x5.00 inches
106 x 127 mm
Emissions:selective catalytic reduction (SCR)
Emission control:Tier 4
Rated Power (EC 97/98):100 hp
74.6 kW
Rated RPM:2500
Starter:electric
Starter volts:12
Coolant capacity:12 qts
11.4 L
Engine Oil

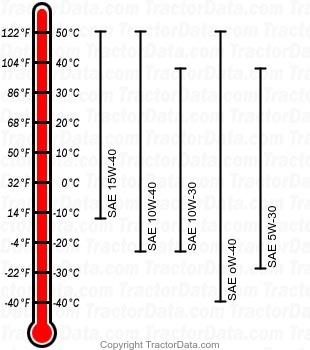

5100E diesel engine oil chart
Oil capacity:12.8 qts
12.1 L
Oil change:500 h
