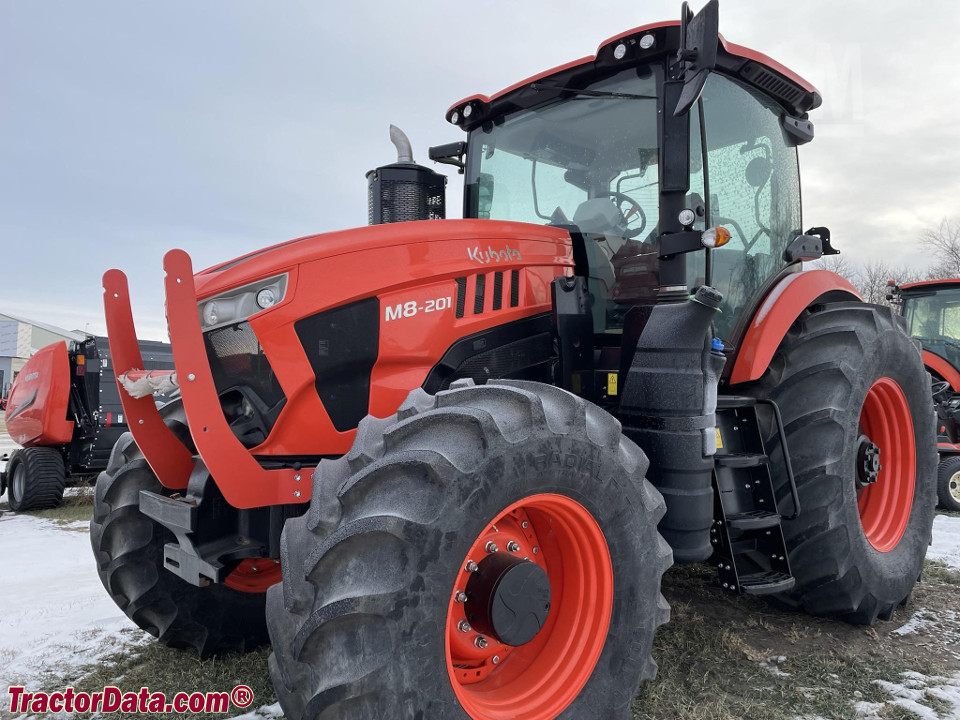

Kubota M8-201
|
|
| Series: | M8-181 ← | M8-201 |
| Production | |
| Distributor: | Kubota |
| Manufacturer: | Versatile |
| Type: | Row-Crop tractor |
| Factory: | Winnigpeg, Manitoba, Canada |
| Kubota M8-201 Power | |
| Engine: | 200 hp 149.1 kW |
| PTO (claimed): | 159 hp 118.6 kW |
| Drawbar (tested): | 164.55 hp 122.7 kW |
| PTO (tested): | 179.86 hp 134.1 kW |
| Kubota M8-201 Engine | |
| Cummins 6.7L 6-cyl diesel | |
| Fuel tank: | 99 gal 374.7 L |
| Exhaust fluid (DEF): | 9 gal 34.1 L |
 Engine details ... | |
| Mechanical | |
| Chassis: | 4x4 MFWD 4WD |
| Steering: | power |
| Trailer brakes: | hydraulic*Optional |
| Cab: | Cab standard with air-conditioning. |
| Transmissions: | 30-speed six-speed power shift |
| continuously-variable transmission | |
 Transmission details ... | |
| Photos | |
 | |
 Kubota M8-201 photos... | |
| Hydraulics | |
| Type: | closed-center load sensing |
| Rear valves: | 3 to 5 |
| Pump flow: | 31.7 gpm 120.0 lpm |
| 42.2 gpm 159.7 lpm *Optional | |
| SCV flow: | 31.7 gpm 120.0 lpm |
| Steering flow: | 11.1 gpm 42.0 lpm |
| Tractor hitch | |
| Rear Type: | III/IIIN |
| Rear lift (at 24"/610mm): | 12478 lbs 5660 kg |
| 15543 lbs 7050 kg *Optional | |
| Front Hitch: | IIIN |
| Front lift: | 8818 lbs 3999 kg |
| Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | electro-hydraulic |
| Rear RPM: | 540/1000 (1.375) |
| 1000 (1.75) | |
| Engine RPM: | 1000 (1.375) |
| Dimensions & Tires | |
| Wheelbase: | 114 inches 289 cm |
| Weight: | 19510 lbs 8849 kg |
 Full dimensions and tires ... | |
| Kubota M8-201 attachments | |
| front-end loader | |
 Attachment details ... |
| Electrical | |
| Ground: | negative |
| Battery volts: | 12 |
