Hesston 70-66 Orchard Transmission
|
|
Series map:
60-66 Orchard
70-66 Orchard
80-66 Orchard
56.7hp*
68.9hp*
77.8hp*
*Estimated engine power for comparison only.
| Transmission options | |
| 12-speed syncromesh | |
| 12-speed mechanical shuttle |
| Transmission | |
| Type | syncromesh |
| Gears | 12 forward and 4 reverse |
| Clutch | 279.4mm dry disc |
| Four synchronized gears (1-4) in three ranges (I, II, III) plus reverse range. | |

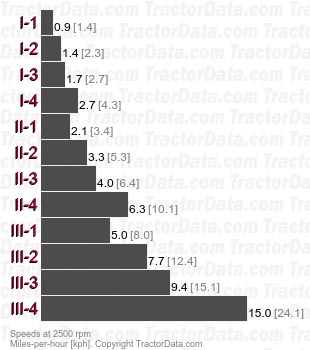

| Speeds | |
| With 14.9-24 rear tires. | |
|
| Transmission | |
| Type | mechanical shuttle |
| Gears | 12 forward and reverse |
| Clutch | 279.4mm dry disc |

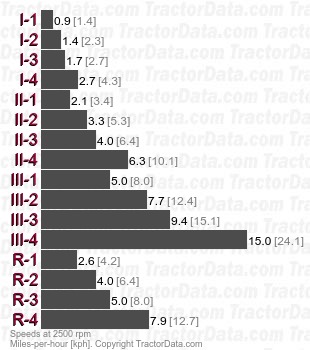

| Speeds | |
| With 14.9-24 rear tires. | |
|
