Series: | 60-66 Orchard | → 70-66 Orchard |
Transmissions overview | |
12-speed syncromesh | |
12-speed mechanical shuttle |
Transmission | |
Type: | syncromesh |
Gears: | 12 forward and 4 reverse |
Clutch: | 279.4mm dry disc |
Four synchronized gears (1-4) in three ranges (I, II, III) plus reverse range. |

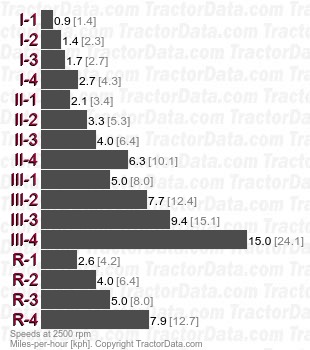

Speeds | |
With 14.9-24 rear tires. | |
Transmission | |
Type: | mechanical shuttle |
Gears: | 12 forward and reverse |
Clutch: | 279.4mm dry disc |

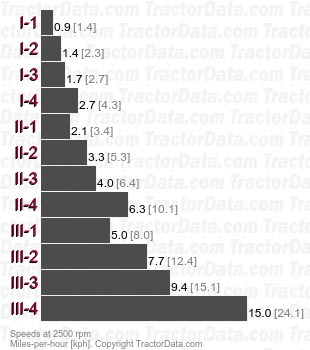

Speeds | |
With 14.9-24 rear tires. | |
