Massey Ferguson 8732S

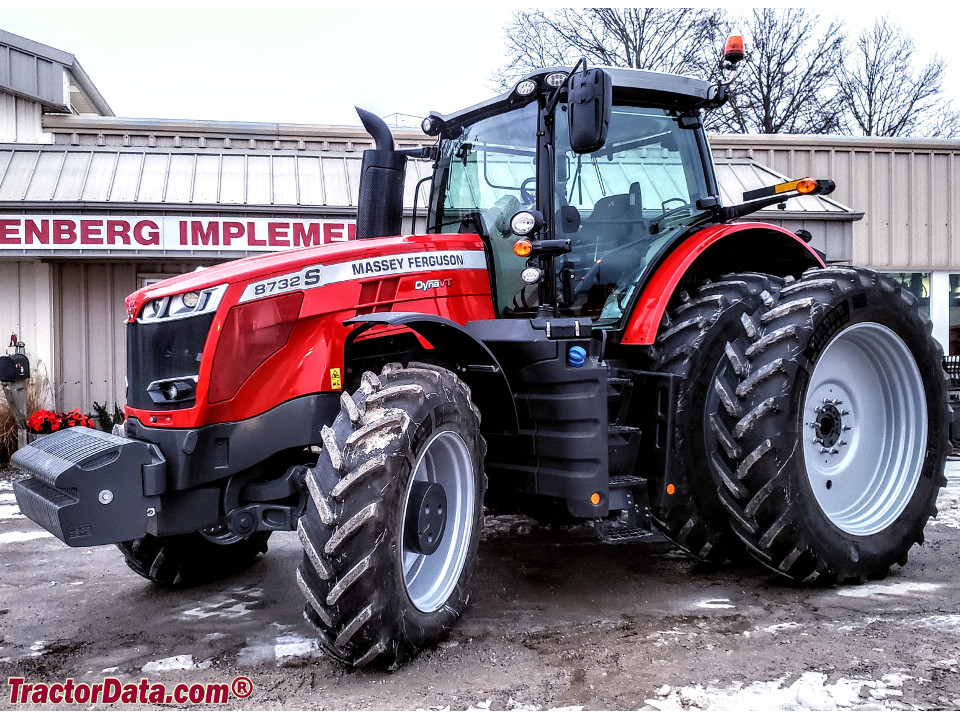

Massey Ferguson 8732S tractor photo
2018 - 2024
8700S Series
Row-Crop tractor
Series map:
8730S
8732S
8735S
220.0kw
238.6kw
261.0kw
Production
ManufacturerMassey Ferguson (a part of AGCO)
Row-Crop tractor
FactoriesJackson, Minnesota, USA
 Beauvais, France
Massey Ferguson 8732S Engine
AGCO Power 8.4L 6-cyl diesel
Fuel tank166.4 gal
629.8 L
Exhaust fluid (DEF)15.85 gal
60.0 L
Engine details ...
Massey Ferguson 8732S Transmission
continuously-variable transmission
Transmission details ...
Massey Ferguson 8732S Power
Engine320 hp
238.6 kW
PTO (claimed)275 hp
205.1 kW
Drawbar (tested)232.7 hp
173.5 kW
PTO (tested)284.8 hp
212.4 kW
Performance test details ...
Mechanical
Four-wheel drive
Power steering
Hydraulic wet disc brakes
Trailer brakespneumatic
 hydraulic OptOptional
Cab standard with air-conditioning.
Photos
Massey Ferguson 8732S
Massey Ferguson 8732S photos...
Hydraulics
Typeclosed-center load-sensing
Pressure2901 psi
200.0 bar
Rear valves6 *Maximum
Front valves2 *Maximum
Pump flow54.2 gpm
205.1 lpm
Tractor hitch
Rear TypeIII
 IV
Rear lift (at ends)26455 lbs
11999 kg
Front HitchIII
Front lift (at ends)11023 lbs
5000 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchelectro-hydraulic
Rear PTO Type540/1000 (1.375)
 1000 (1.75)
Engine RPM540E@1577
 1000E@1605
 1000@1970
Front PTOindependent
Clutchelectro-hydraulic
Front PTO Type1000
Engine RPM1000@2036
Dimensions & Tires
Wheelbase122.1 inches
310 cm
Weight23810 lbs
10800 kg
Front tire620/75R30
Rear tire650/85R42
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
Battery volts12
References
8732S references literature
MF 8700S published in 2017, by Massey Ferguson
MF 8700S Series published in 2023, by Massey Ferguson
