Tractors > Massey Ferguson > 5712SL

Massey Ferguson 5712SL



Massey Ferguson 5712SL tractor photo
2016 - 2018
5700SL Series
Utility tractor
Series map:
5711SL
5712SL
5713SL
78.3kw
85.8kw
93.2kw
Production
ManufacturerMassey Ferguson (a part of AGCO)
Utility tractor
Built in Beauvais, France
Original price was $100,073 in 2018
Massey Ferguson 5712SL Engine
AGCO Power 4.4L 4-cyl diesel
Fuel tank47.5 gal
179.8 L
Exhaust fluid (DEF)6.6 gal
25.0 L
Engine details ...
Massey Ferguson 5712SL Transmissions
16-speed four-speed power shift
24-speed six-speed power shift
Transmission details ...
Massey Ferguson 5712SL Power
Engine115 hp
85.8 kW
PTO (claimed)95 hp
70.8 kW
Mechanical
Two- or four-wheel drive
Final drivesplanetary
Differential lockelectro-hydraulic front and rear
Power steering
Hydraulic wet disc brakes
Trailer brakeshydraulic OptOptional
 pneumatic OptOptional
Cab standard with air-conditioning. Auto-Guide 3000 ((Optional))
Photos

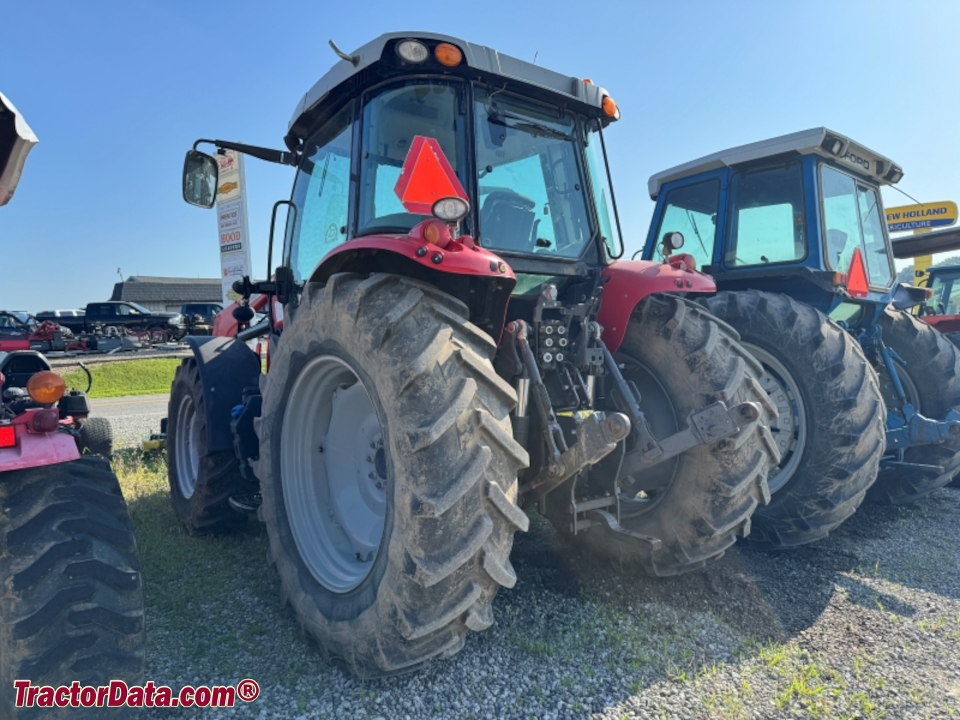

2017 Massey Ferguson 5712SL utility tractor with 941 front-end loader.
Massey Ferguson 5712SL photos...
Hydraulics
Typeopen center
 closed center load-sensing OptOptional
Pressure2900 psi
200.0 bar
Valves1 to 4
Pump flow15 gpm
56.8 lpm
 26 gpm (Twin-Flow)
98.4 lpm
 29 gpm (CCLS)
109.8 lpm
Tractor hitch
Rear TypeIII/II
Controllower-link draft sensing
Rear lift (at 24"/610mm)8575 lbs
3889 kg
DrawbarCat. 2
Power Take-off (PTO)
Rear PTOindependent
Clutchelectro-hydraulic
Rear PTO Type540/540E (1.375)
 540/540E/1000 (1.375)
Dimensions & Tires
Wheelbase100.4 inches
255 cm
Weight8929 to 10582 pounds
Front tire380/85R24
Rear tire460/85R34
Full dimensions and tires ...
Massey Ferguson 5712SL attachments
front-end loader
Attachment details ...

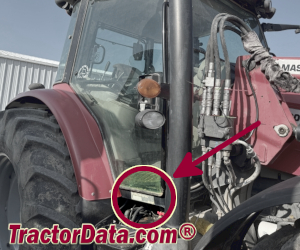

5712SL Serial Number Location
Massey Ferguson 5712SL serial number location

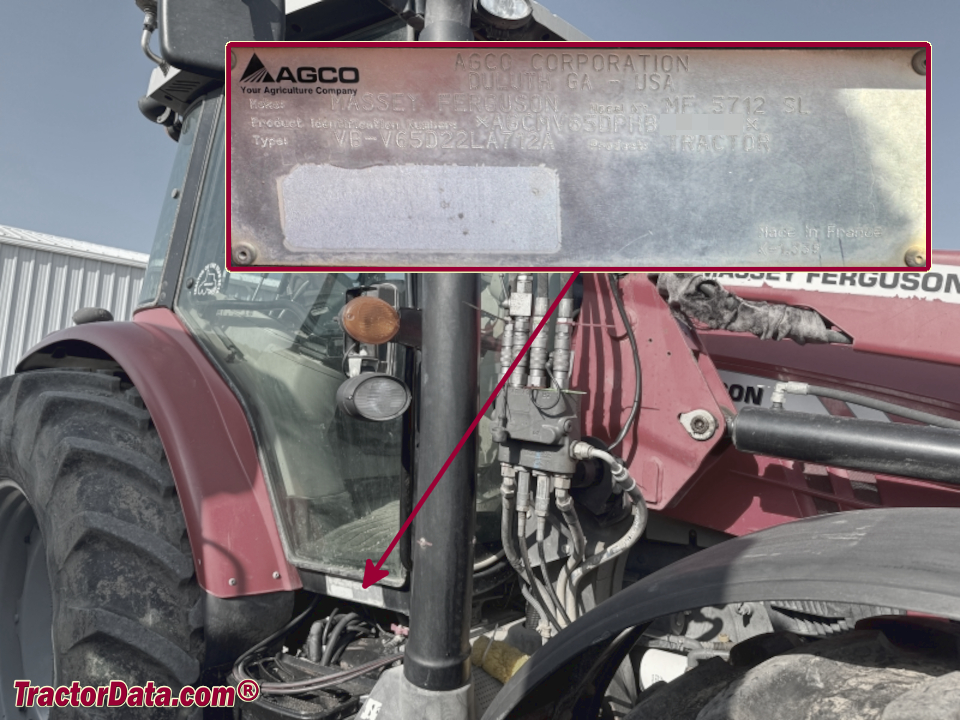

Serial number plate on the right side of the tractor, on the bottom of the cab frame.
Electrical
Groundnegative
Charging systemalternator
Classic Charging amps120
Deluxe Charging amps175
Battery CCA600
Battery volts12
Battery Group1
References
5712SL references literature
5700SL Series published in 2016, by Massey Ferguson
MF 5700 SL published in 2015, by Massey Ferguson
5700SL Series Mid-Range Tractors published in 2016, by Massey Ferguson
MF 5700 SL Product Book published in 2015, by Massey Ferguson
