Iseki TG273

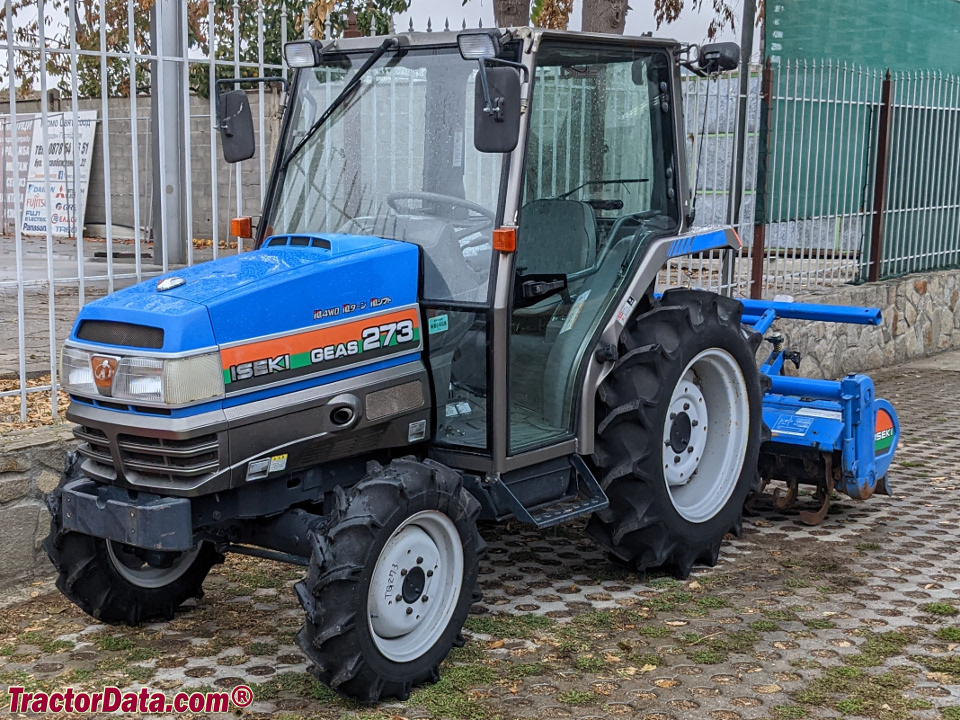

Iseki TG273 tractor photo
???? - 2004
TG Series
Compact Utility tractor
Series map:
TG253
TG273
TG293
18.4kw
19.9kw
21.3kw
Production
ManufacturerIseki
Compact Utility tractor
Variants
TG273utility
TG273Nnarrow
Iseki TG273 Engine
Iseki 1.5L 3-cyl diesel
Fuel tank9.25 gal
35.0 L
Engine details ...
Iseki TG273 Power
Engine26.7 hp
19.9 kW
Mechanical
Four-wheel drive
Power steering
Wet disc brakes
Two-post ROPS. Cab optional.
Tractor hitch
Rear TypeI
Controlposition control
Power Take-off (PTO)
Rear PTO Type600/797/1094/1292 (1.375)
Dimensions & Tires
Wheelbase66.5 inches
168 cm
Weight2789 to 3142 pounds
Front tire7-16
Rear tire11.2-24
Full dimensions and tires ...
Electrical
Groundnegative
Battery volts12
References
TG273 references literature
GEAS TG Operator Manual (1690-912-001-0A)
