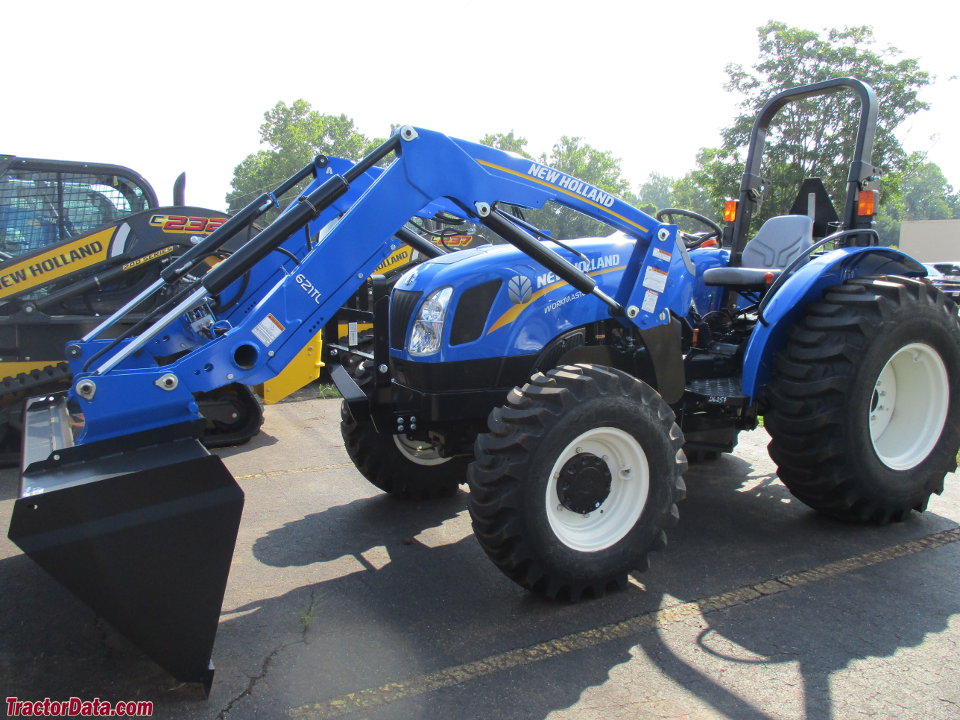

New Holland Workmaster 50
2015 - Workmaster Series Utility tractor
Production Manufacturer New Holland (a part of CNH)
Utility tractor Original price was $23,658 in 2017
New Holland Workmaster 50 Power Engine 53 hp39.5 kW
PTO (claimed) 45 hp33.6 kW
Mechanical Two- or four-wheel drive Final drives inboard planetary
Differential lock mechanical rear
Power steering Wet disc brakes Two-post folding ROPS.
Hydraulics Type open center
Valves 1 or 2
Pump flow 12 gpm45.4 lpm
Total flow 17.5 gpm66.2 lpm
Steering flow 5.5 gpm20.8 lpm
Tractor hitch Rear Type II/I
Control position and draft control
Rear lift (at ends) 3307 lbs1500 kg
Rear lift (at 24"/610mm) 2701 lbs1225 kg
Rear Arms telescoping draft links
Power Take-off (PTO) Rear PTO independent
Clutch mechanical
Rear PTO Type 540
540/540E Opt Optional
Electrical Ground negative
Charging system alternator
Charging amps 75
Battery volts 12
References Boomer and Workmaster Series Tractors published in 2016, by New Holland Under 60-HP Tractors published in 2017, by New Holland Under 60-HP Tractors published in 2017, by New Holland Workmaster Series Tractors published in 2015, by New Holland
