New Holland Workmaster 45

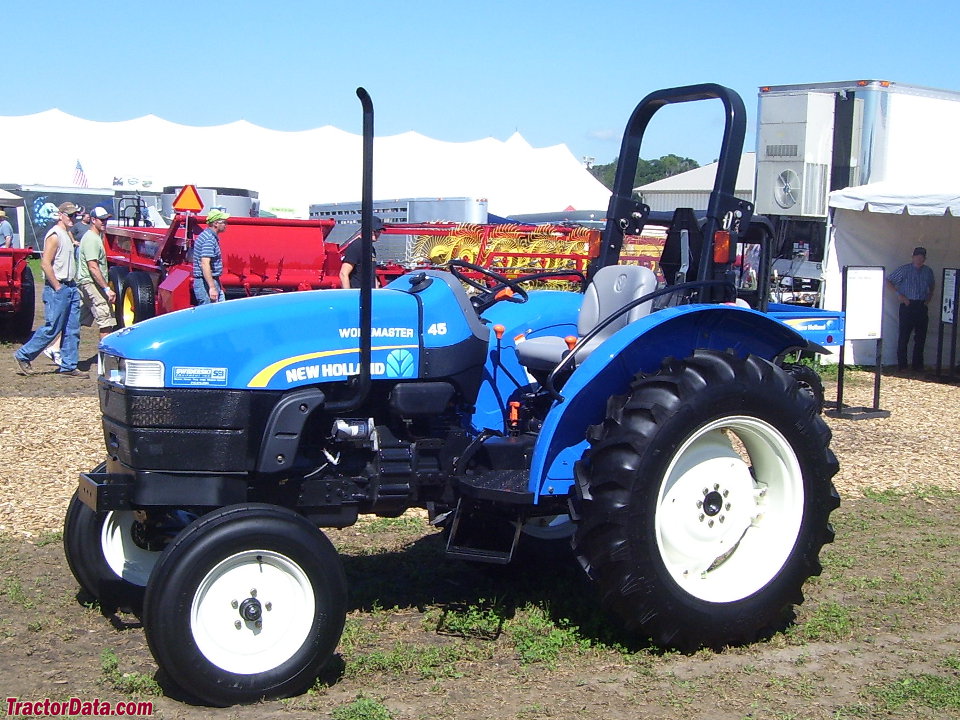

New Holland Workmaster 45 tractor photo
2009 - 2014
Workmaster Series
Utility tractor
Series:Workmaster 45Workmaster 55
Workmaster 50
Manufacturer:New Holland
Type:Utility tractor
New Holland Workmaster 45 Power
Engine (gross):45 hp
33.6 kW
PTO (claimed):39 hp
29.1 kW
New Holland Workmaster 45 Engine
ISM 2.2L 4-cyl diesel
Fuel tank:13.5 gal
51.1 L
Engine details ...
Chassis:4x2 2WD
 4x4 MFWD 4WD (optional)
Differential lock:mechanical rear differential lock with foot pedal, limited slip front axle (4WD)
Steering:hydrostatic power
Brakes:differential mechanical wet disc
Cab:Two-post foldable ROPS
Transmission:8-speed synchronized mechanical shuttle
Transmission details ...
Type:open center fixed displacement
Valves:1 or 2
Pump flow:11.6 gpm
43.9 lpm
Total flow:16.9 gpm
64.0 lpm
Steering flow:5.3 gpm
20.1 lpm
Tractor hitch
Rear Type:2/1
Control:position control
Rear lift (at 24"/610mm):1,830 lbs
830 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540
Dimensions & Tires
Weight:3527 to 3836 pounds
Front tire:6x16
Rear tire:12.4x28 (2WD)
Full dimensions and tires ...
Charging system:alternator
Charging amps:40
Charging volts:12
Battery CCA:800
Battery volts:12
