New Holland Workmaster 40

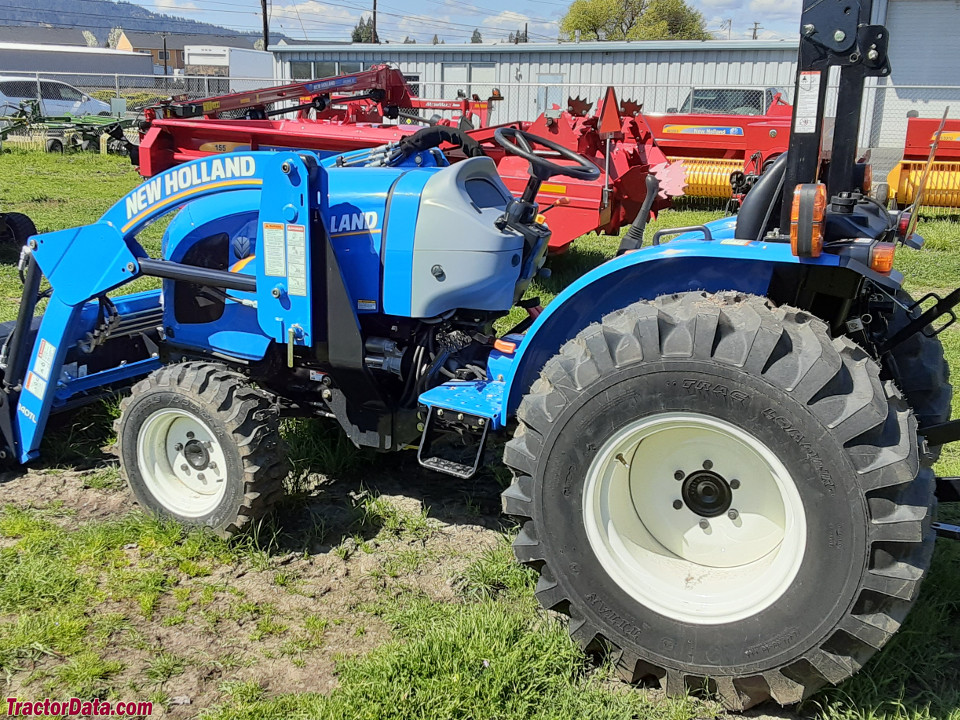

New Holland Workmaster 40 tractor photo
2017 -
Workmaster Series
Compact Utility tractor
Workmaster 37
Series:Workmaster 35Workmaster 40
Production
Manufacturer:New Holland (a part of CNH)
Type:Compact Utility tractor
Original price:$20,554 (2017 shuttle )
Original price:$22,187 (2017 hydro )
New Holland Workmaster 40 Power
Engine:40 hp
29.8 kW
Gear PTO (claimed):34 hp
25.4 kW
Hydro PTO (claimed):32 hp
23.9 kW
New Holland Workmaster 40 Engine
LS Mitron 1.9L 3-cyl diesel
Fuel tank:7.4 gal
28.0 L
Engine details ...
Mechanical
Chassis:4x4 MFWD 4WD
Steering:power
Brakes:wet disc
Cab:Two-post folding ROPS.
Transmissions:12-speed synchronized shuttle
 hydrostatic
Transmission details ...
Hydraulics
Type:open center
Valves:1 or 2
Pump flow:8.2 gpm
31.0 lpm
Gear Total flow:12.4 gpm
46.9 lpm
Hydro Total flow:13.5 gpm
51.1 lpm
Gear Steering flow:4.2 gpm
15.9 lpm
Hydro Steering flow:5.3 gpm
20.1 lpm
Tractor hitch
Rear Type:I
Control:position control
Rear lift (at ends):1808 lbs
820 kg
Rear lift (at 24"/610mm):1433 lbs
650 kg
Power Take-off (PTO)
Rear PTO:independent
Clutch:electro-hydraulic
Rear RPM:540 (1.375)
Dimensions & Tires
Wheelbase:67.5 inches
171 cm
Weight:3067 lbs
1391 kg
Front tire:7x14
Rear tire:11.2x24
Full dimensions and tires ...
New Holland Workmaster 40 attachments
mid-mount mower deck
snowblower
blade
front-end loader
backhoe
Attachment details ...
Electrical
Ground:negative
Charging system:alternator
Charging amps:70
Battery volts:12
