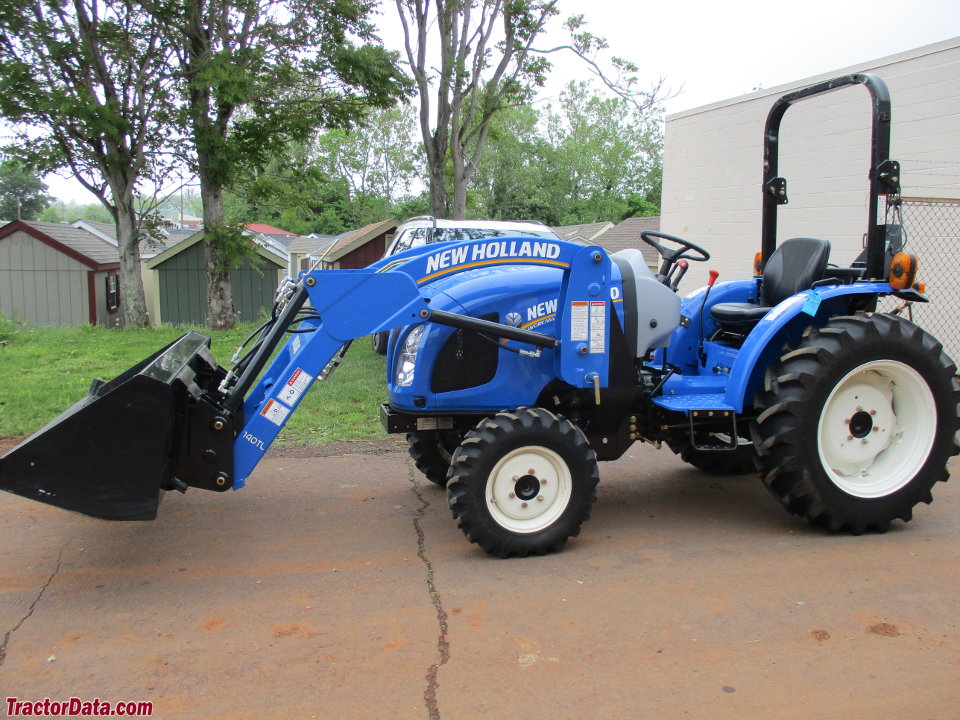

New Holland Workmaster 33
|
|
| Production | |
| Manufacturer | New Holland (a part of CNH) |
| Compact Utility tractor | |
| New Holland Workmaster 33 Engine | |
| Shibaura 1.5L 3-cyl diesel | |
| Fuel tank | 7.4 gal 28.0 L |
 Engine details ... | |
| New Holland Workmaster 33 Transmissions | |
| 12-speed synchronized shuttle | |
| hydrostatic | |
 Transmission details ... |
| New Holland Workmaster 33 Power | |
| Engine | 32.2 hp 24.0 kW |
| Gear PTO (claimed) | 26 hp 19.4 kW |
| Hydro PTO (claimed) | 24.7 hp 18.4 kW |
| Mechanical | |
| Four-wheel drive | |
| Final drives | inboard planetary |
| Power steering | |
| Wet disc brakes | |
| Two-post folding ROPS. | |
| Hydraulics | |
| Type | open center |
| Valves | 1 or 2 |
| Pump flow | 8.2 gpm 31.0 lpm |
| Tractor hitch | |
| Rear Type | I |
| Control | position control |
| Rear lift (at ends) | 1808 lbs 820 kg |
| Rear lift (at 24"/610mm) | 1433 lbs 650 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540 (1.375) |
| Dimensions & Tires | |
| Wheelbase | 67.5 inches 171 cm |
| Weight | 3067 lbs 1391 kg |
| Front tire | 7x14 |
| Rear tire | 11.2x24 |
 Full dimensions and tires ... | |
| New Holland Workmaster 33 attachments | |
| front-end loader | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 85 |
| Battery volts | 12 |
| References | |
 | |
| Boomer and Workmaster Series Tractors published in 2016, by New Holland |
