John Deere 2040
| | 1976 - 1982 |
|
| 2040 Series | | Utility tractor |
|
Series map:
2040
2240
44.4hp*
55.6hp*
*Estimated engine power for comparison only.
| Production |
| Manufacturer | John Deere
|
| Utility tractor |
| Built in Mannheim, Baden-Württemberg, Germany |
| Original price was $14,000 in 1982 |
| Mechanical |
| Two- or four-wheel drive |
| Final drives | planetary
|
| Differential lock | mechanical rear
|
| Steering | power assist
|
| Hydraulic wet disc brakes |
| Roll-Gard ROPS |
| Hydraulics |
| Type | closed center
|
| Pressure | 2250 psi
155.1 bar
|
| Valves | 1
|
| Pump flow | 13 gpm
49.2 lpm
|
| Tractor hitch |
| Rear Type | II
|
| Control | position control and lower-link draft sensing
|
| Rear lift (at 24"/610mm) | 2400 lbs
1088 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Clutch | dry 9-inch disc (live)
|
| Rear PTO Type | 540
|
| 2040 Serial Number Location |
 |
| Serial number plate on the right side of the Deere 2040 frame, above the front axle. |
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Battery volts | 12
|
| References |
 |
| Tractors, 40 to 80 HP published in 1981, by John Deere |
| Tractors 40 to 80 HP published in 1981, by John Deere |
| John Deere tractors 22 to 50 HP published in 1980 |
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on March 14, 2022 |
http://techpubs.deere.com/ - Official operator manuals for purchase or download from Deere.
|
©2000-2024 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...
Transmission details ...
Performance test details ...

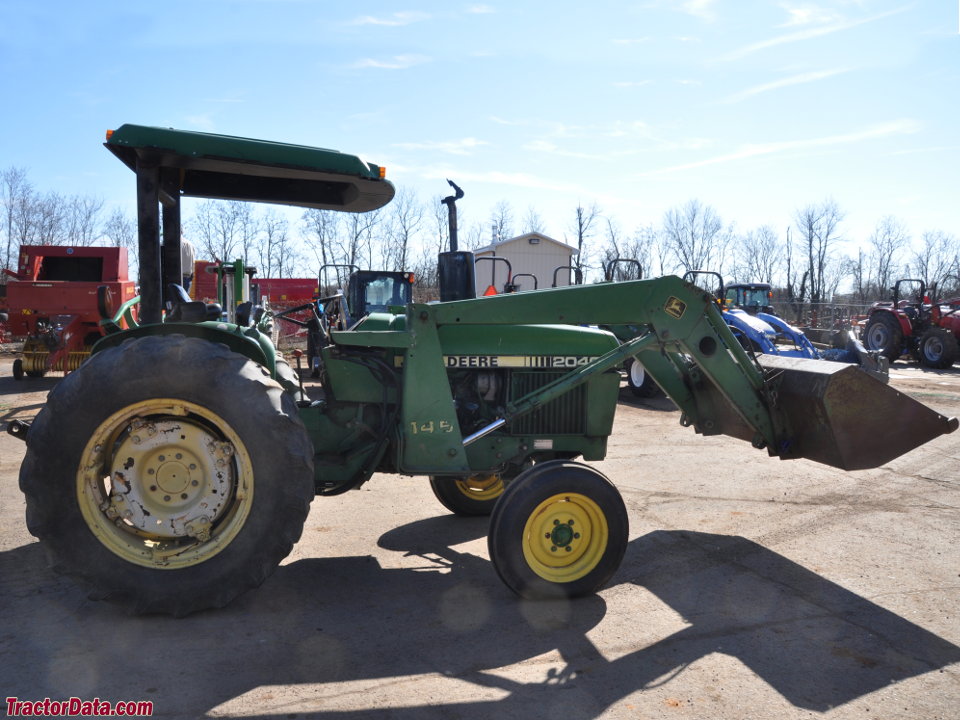

John Deere 2040 photos...
