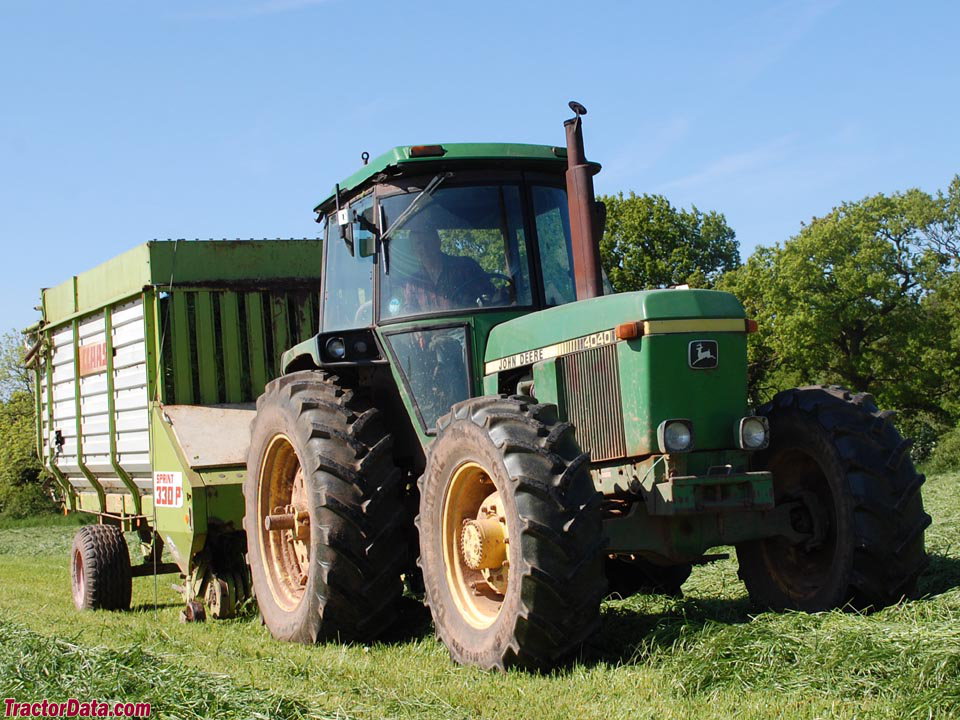

John Deere 4040
| | 1977 - 1984 |
| 4040 Series | | Row-Crop tractor |
|
Series map:
4040
4040S
90.0kw
85.8kw
| Production |
| Manufacturer | John Deere
|
| Row-Crop tractor |
| Built in Mannheim, Baden-Württemberg, Germany |
| John Deere 4040 Power |
| Engine (gross) | 120.7 hp
90.0 kW
|
| Engine (net) | 108.6 hp
81.0 kW
|
| PTO (claimed) | 93.8 hp
69.9 kW
|
| Mechanical |
| Drive | 4x2 2WD
|
| | 4x4 HFWD 4WD
|
| Final drives | planetary
|
| Differential lock | hydro-mechanical
|
| Power steering |
| Wet disc brakes |
| Sound-Gard cab standard. |
| Hydraulics |
| Type | closed center
|
| Pressure | 2250 psi
155.1 bar
|
| Pump flow | 25.4 gpm
96.1 lpm
|
| Tractor hitch |
| Rear Type | II
|
| Control | position and draft control
|
| Rear lift | 10590 lbs
4803 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Clutch | hydraulic wet disc
|
| Rear PTO Type | 540/1000 (1.375)
|
| 4040 Serial Number Location |
 |
| Serial number tag on the front right of the tractor frame, above the front axle. |
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 55
|
| Batteries | 2
|
| Battery volts | 12
|
| Battery AH | 88
|
| References |
 |
| 4040 4240 4440 4640 published in 1980, by John Deere |
| Product Information Manual published in 1977, by John Deere |
| Move up to John Deere... published in 1981 |
