Tractors > John Deere > 4040S

John Deere 4040S



John Deere 4040S tractor photo
1981 - 1984
4040 Series
Row-Crop tractor
Series map:
4040
4040S
4240
90.0kw
85.8kw
100.0kw
Production
ManufacturerJohn Deere
Row-Crop tractor
Built in Mannheim, Baden-Württemberg, Germany
John Deere 4040S Engine
John Deere 5.9L 6-cyl diesel
Fuel tank37 gal
140.0 L
Engine details ...
John Deere 4040S Transmissions
16-speed
12-speed
Transmission details ...
John Deere 4040S Power
Engine115 hp
85.8 kW
Mechanical
Four-wheel drive
Power steering
Wet disc brakes
Sound-Gard cab standard.
Photos
No photos of the John Deere 4040S are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Typeclosed center
Pressure2250 psi
155.1 bar
Pump flow25.4 gpm
96.1 lpm
Tractor hitch
Rear TypeII
Rear lift10590 lbs
4803 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchhydraulic disc
Rear PTO Type540/1000
Dimensions & Tires
Weight11070 lbs
5021 kg
Front tire11.00-16
Rear tire18.4-38
Full dimensions and tires ...
4040S Serial Number Location
John Deere 4040S serial number location
Serial number tag on the right side of the tractor frame, above the front axle.
Electrical
Groundnegative
Charging systemalternator
Charging amps90
Batteries2
Battery volts12
References

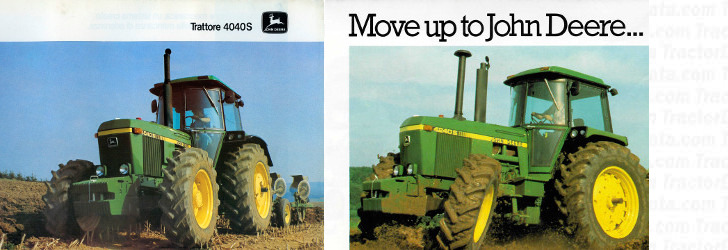

4040S references literature
Trattore 4040S published by John Deere
Move up to John Deere... published in 1981
