Kubota M6-131
|
|
| Production | |
| Manufacturer | Kubota |
| Utility tractor | |
| Kubota M6-131 Engine | |
| Kubota 6.1L 4-cyl diesel | |
| Fuel tank | 50.2 gal 190.0 L |
| Exhaust fluid (DEF) | 5.3 gal 20.1 L |
 Engine details ... | |
| Kubota M6-131 Transmissions | |
| 24-speed partial power shift | |
| 32-speed partial power shift | |
 Transmission details ... |
| Kubota M6-131 Power | |
| Engine (gross) | 131.6 hp 98.1 kW |
| Engine (net) | 123.2 hp 91.9 kW |
| PTO (claimed) | 104 hp 77.6 kW |
| Drawbar (tested) | 94.84 hp 70.7 kW |
| PTO (tested) | 115.06 hp 85.8 kW |
 Performance test details ... | |
| Mechanical | |
| Four-wheel drive | |
| Differential lock | electro-hydraulic front and rear |
| Power steering | |
| Hydraulic wet disc brakes | |
| Grand X Cab standard with air-condiitoning. | |
| Photos | |
 | |

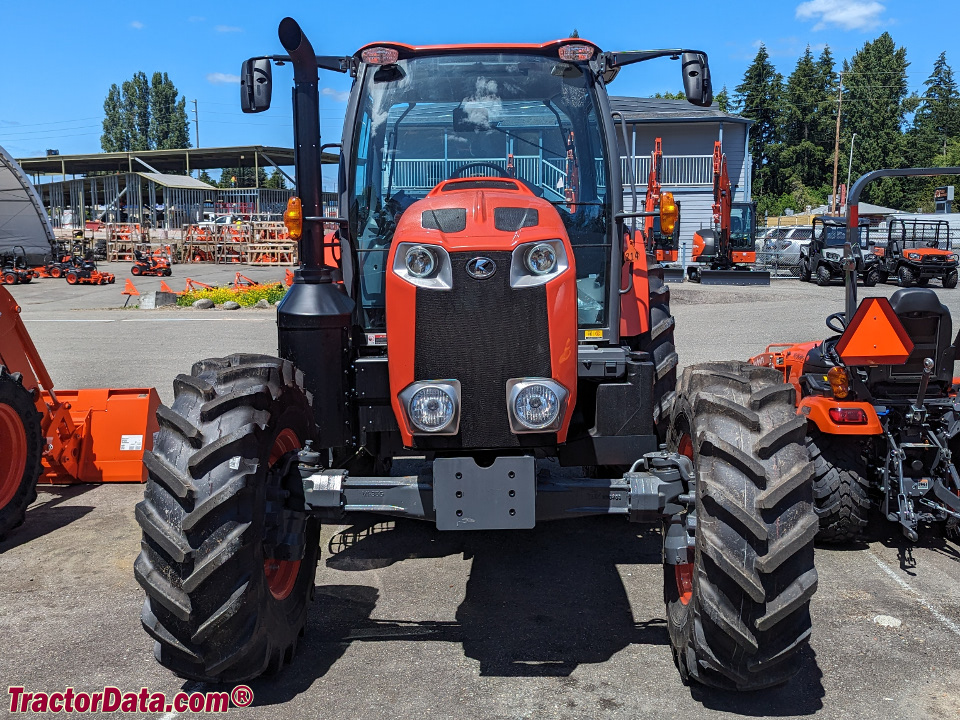

 Kubota M6-131 photos... | |
| Hydraulics | |
| Valves | 2 to 4 |
| Pump flow | 20.4 gpm 77.2 lpm |
| Steering flow | 14.5 gpm 54.9 lpm |
| Tractor hitch | |
| Rear Type | II |
| Control | electronic lower-link draft sensing |
| Rear lift (at 24"/610mm) | 6834 lbs 3099 kg |
| 9447 lbs*Optional, advertised capacity. Tested lift was 8613 pounds. 4285 kg | |
| Rear Arms | telescopic lower link ends and stabilizers |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Clutch | hydraulic wet disc |
| Rear PTO Type | 540/1000 |
| Dimensions & Tires | |
| Wheelbase | 105.9 inches 268 cm |
| Weight | 10880 lbs 4935 kg |
| Front tire | 14.9R24 |
| Rear tire | 18.4R38 |
 Full dimensions and tires ... | |
| Kubota M6-131 attachments | |
| front-end loader | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 130 |
| Battery volts | 12 |
| References | |
 | |
| M6-101/M6-111/M6-131/M6-141 published in 2014, by Kubota | |
| M6-101/M6-111/M6-131/M6-141 published in 2021, by Kubota |
