Tractors > International Harvester > TD-9 Series 92

International Harvester TD-9 Series 92



International Harvester TD-9 Series 92 tractor photo
1939 - 1962
Model year
Agricultural Crawler tractor
Production
ManufacturerInternational Harvester
Agricultural Crawler tractor
Built in Melrose Park, Illinois, USA
Total built59,800
Variants
TD9-426track-loader
International Harvester TD-9 Engine
International Harvester 4.6L 6-cyl diesel
Fuel tank31 gal
117.3 L
Engine details ...
International Harvester TD-9 Transmissions
5-speed gear
4-speed gear
Transmission details ...
International Harvester TD-9 Power
Engine66 hp
49.2 kW
Drawbar (claimed)55.7 hp
41.5 kW
Drawbar (tested)56.26 hp
42.0 kW
PTO (tested)69.11 hp
51.5 kW
Performance test details ...
Mechanical
Drivecrawler
Contracting band brakes
Open operator station.
Photos

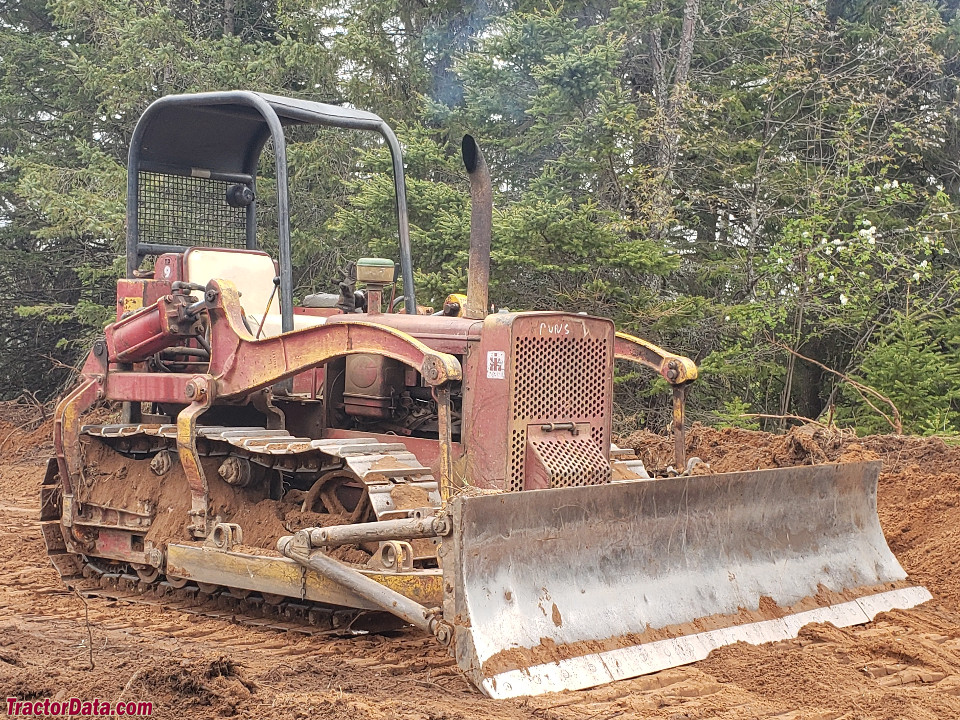

International TD-9 92 bulldozer.
International Harvester TD-9 photos...
Dimensions & Tracks
Weight13500 lbs
6123 kg
13-inch tracks
Full dimensions and tracks ...
TD-9 Serial Numbers
Location:lower-left dash
1959501
19602353
19613895
19625090

FAQ: How to read a serial number table.
