International Harvester TD-9 Series 92 Tests



International Harvester TD-9 Series 92 tractor photo
1939 - 1962
Model year
Agricultural Crawler tractor
Nebraska Tractor Test 751

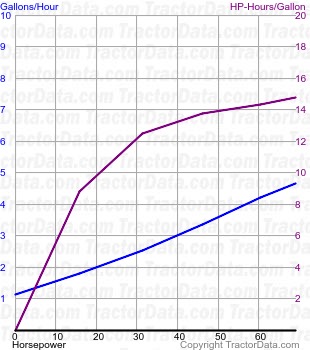

TD-9 Series 92 fuel use from test 751
Nebraska Tractor Test 751
Diesel 5-speed crawler
August 2 - 17, 1960
Link: Nebraska Tractor Test 751 file
PTO performance
Max power69.11 hp
51.5 kW
Fuel use4.7 gal/hour
17.8 l/hour
Power at rated PTO speed66.36 hp
49.5 kW
Fuel use4.7 gal/hour
17.8 l/hour
Drawbar performance
Max power56.26 hp
42.0 kW
Fuel use4.5 gal/hour
17.0 l/hour
Gear 2 used for power test.
Max pull13156 lbs
5967 kg
Gear 1 used for pull test.
