Farmall Super M-TA
|
|
| Production | |
| Manufacturer | Farmall (a part of International Harvester) |
| Row-Crop tractor | |
| Built in Rock Island, Illinois, USA | |
| Variants | |
| Super M | gear with spark engine |
| Super M-TA | TA with spark engine |
| Super MD | gear with diesel engine |
| Super MD-TA | TA with diesel engine |
| Super MV | high-crop |
| Farmall Super M-TA Engines | |
| International Harvester 4.3L 4-cyl gasoline | |
| International Harvester 4.3L 4-cyl LP gas | |
 Engine details ... |
| Farmall Super M-TA Transmission | |
| 10-speed two-speed power shift | |
 Transmission details ... |
| Farmall Super M-TA Power |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Differential mechanical dry disc brakes | |
| Open operator station. |
| Photos | |
 | |
 Farmall Super M-TA photos... | |
| Capacity | |
| Fuel | 21 gal 79.5 L |
| Aux. fuel | 0.9 gal 3.4 L |
| Hydraulic system | 1.9 gal 7.2 L |
| Hydraulics | |
| Type | IH Lift-All |
| Capacity | 1.9 gal 7.2 L |
| Tractor hitch | |
| Type | IH Fast Hitch *Dealer-installed optional equipment |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540 |
| Engine RPM | 534@1450 |
| Dimensions & Tires | |
| Wheelbase | 95.75 inches (tricycle) 243 cm |
| 99.75 inches (wide) 253 cm | |
| Weight | 5445 to 5603 pounds |
| Front tire | 6.00-16 |
| Rear tire | 12-38 |
 Full dimensions and tires ... | |

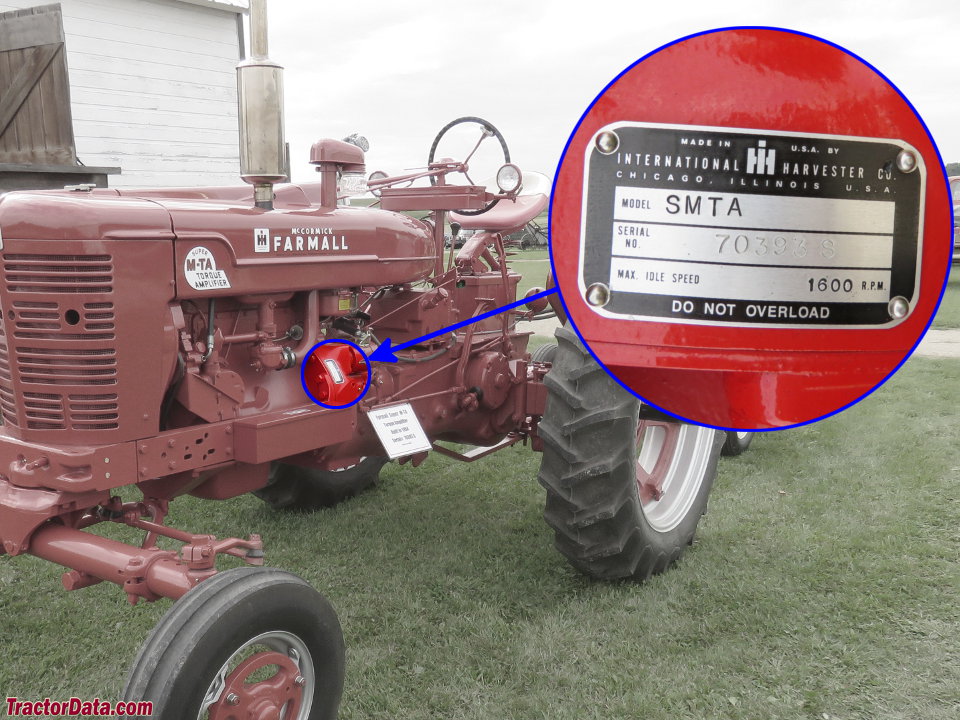

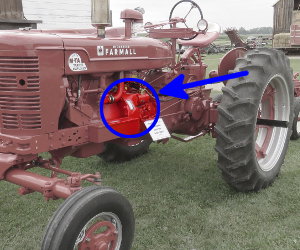

| Super M-TA Serial Number Location | |
 | |
| Serial number plate on the left side of the Farmall Super M-TA clutch housing. |
| Super M-TA Serial Numbers | |
| 1954 | SM-TA60001 |
| Final | SM-TA83523 |
FAQ: How to read a serial number table. | |
| Belt Pulley | |
| Diameter | 11 inches 27 cm |
| Width | 7.5 inches 19 cm |
| RPM | 899 |
| Speed | 2588 ft/min 788.82 meters/min |
| Electrical | |
| Ground | positive |
| Charging system | generator |
| Battery volts | 6 |
| References | |
 | |
| New McCormick Farmall Super M-TA published in 1954, by International Harvester | |
| Operator's Manual Farmall Super M-TA (1004374) published in 1954 | |
| Farmall Super M-TA published in 1954, by International Harvester |
