CaseIH Steiger 580 Tests



CaseIH Steiger 580 tractor photo
2014 - 2023
Steiger 4WD Series
Four-wheel Drive (4WD) tractor
Series map:
Steiger 540
Steiger 580
Steiger 620
535.0hp
580.0hp
620.0hp
OCED Tractor Test 2162

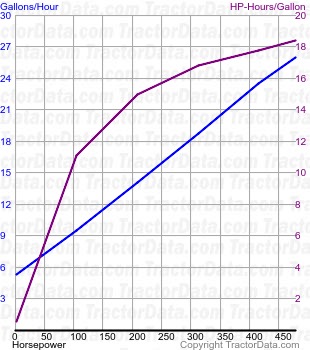

Steiger 580 fuel use from test 1043
OCED Tractor Test 2162
Diesel 16-speed 4WD
October 6 - 11, 2016
Link: OCED Tractor Test 2162 file
PTO performance
Max power540.36 hp
402.9 kW
Fuel use27.9 gal/hour
105.6 l/hour
Power at rated engine speed477.38 hp
356.0 kW
Fuel use26.0 gal/hour
98.4 l/hour
Power at rated PTO speed535.92 hp
399.6 kW
Fuel use27.3 gal/hour
103.3 l/hour
Drawbar performance
Max power495.25 hp
369.3 kW
Fuel use28.3 gal/hour
107.1 l/hour
Gear 5 used for power test.
Max pull54573 lbs
24754 kg
Gear 2 used for pull test.
