CaseIH Steiger 550 Tests



CaseIH Steiger 550 tractor photo
2011 - 2013
Four-wheel Drive (4WD) tractor
Series map:
Steiger 500
Steiger 550
Steiger 600
500.0hp
550.0hp
600.0hp
OCED Tractor Test 2047

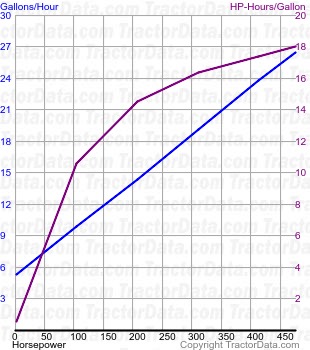

Steiger 550 fuel use from test 847
OCED Tractor Test 2047
Diesel 16-speed 4WD
November 8 - 16, 2012
Link: OCED Tractor Test 2047 file
PTO performance
Max power536.32 hp
399.9 kW
Fuel use28.0 gal/hour
106.0 l/hour
Power at rated engine speed475.47 hp
354.6 kW
Fuel use26.4 gal/hour
99.9 l/hour
Power at rated PTO speed518.57 hp
386.7 kW
Fuel use27.7 gal/hour
104.8 l/hour
Drawbar performance
Max power462.64 hp
345.0 kW
Fuel use27.6 gal/hour
104.5 l/hour
Gear 5 used for power test.
Max pull51953 lbs
23565 kg
Gear 1 used for pull test.
