Tractors > CaseIH > Steiger 620

CaseIH Steiger 620 Tests



CaseIH Steiger 620 tractor photo
2014 - 2023
Steiger 4WD Series
Four-wheel Drive (4WD) tractor
Series map:
Steiger 580
Steiger 620
580.0hp
620.0hp
OCED Tractor Test 2164

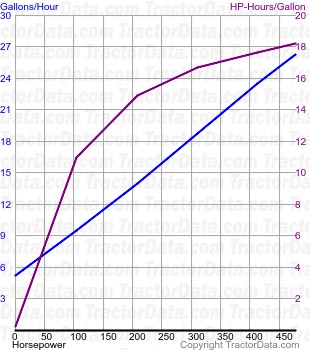

Steiger 620 fuel use from test 1045
OCED Tractor Test 2164
Diesel 16-speed 4WD
September 27 - October 5, 2016
Link: OCED Tractor Test 2164 file
PTO performance
Max power539.58 hp
402.4 kW
Fuel use28.0 gal/hour
106.0 l/hour
Power at rated engine speed477.00 hp
355.7 kW
Fuel use26.2 gal/hour
99.2 l/hour
Power at rated PTO speed535.05 hp
399.0 kW
Fuel use27.5 gal/hour
104.1 l/hour
Drawbar performance
Max power531.51 hp
396.3 kW
Fuel use30.1 gal/hour
113.9 l/hour
Gear 5 used for power test.
Max pull52098 lbs
23631 kg
Gear 2 used for pull test.
