J.I. Case VAH

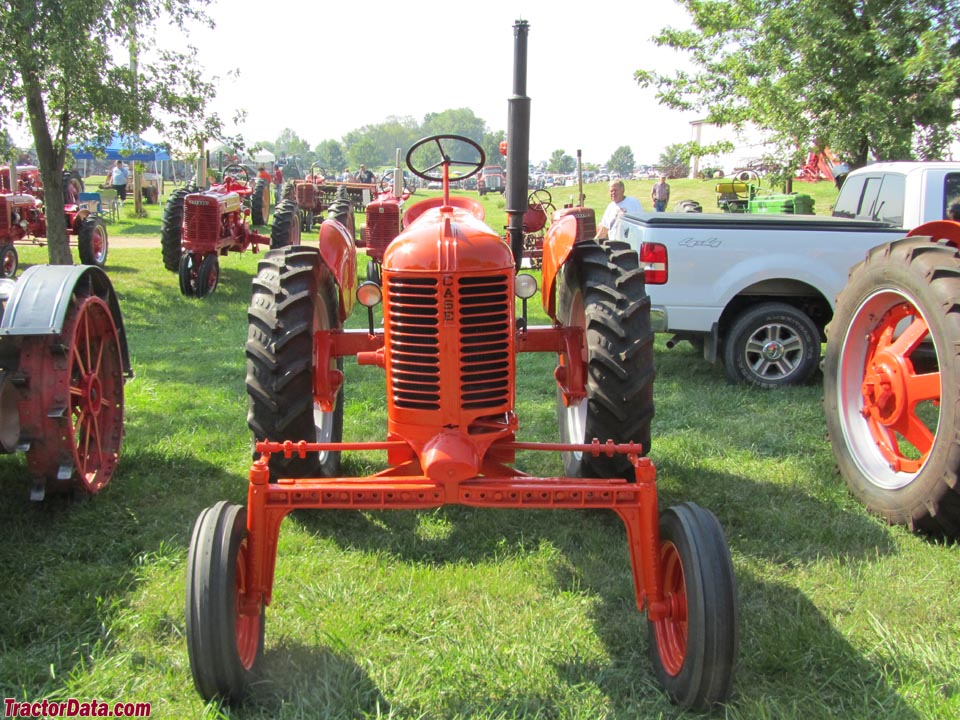

J.I. Case VAH tractor photo
1942 - 1955
High-Clearance tractor
VC
Series:VAH
Production
Manufacturer:J.I. Case
Type:High-Clearance tractor
Factory:Rock Island, Illinois, USA
Total built:2,016
Variants
VA:standard tread
VAC:tricycle row-crop
VAI:industrial
VAIW:warehouse
VAH:high-clearance
VAS:offset high-clearance
VAC-11:single-front wheel
VAC-12:dual-front row-crop
VAC-13:adjustable wide-front row-crop
VAC-14:lowered version of VAC-13
VAO-15:similar to VAO
J.I. Case VAH Power
Drawbar (claimed):13 hp
9.7 kW
PTO (claimed):17 hp
12.7 kW
Plows:2
J.I. Case VAH Engines
J.I. Case 2.0L 4-cyl distillate
J.I. Case 2.0L 4-cyl gasoline
Fuel tank:9.25 gal
35.0 L
Aux. fuel:1 gal
3.8 L
Engine details ...
Mechanical
Chassis:4x2 2WD
Steering:manual
Brakes:differential mechanical disc
Cab:Open operator station.
Transmission:4-speed unsynchronized gear
Transmission details ...
Tractor hitch
Type:Case Eagle Hitch
Power Take-off (PTO)
Rear PTO:transmission
Rear RPM:540 (1.375)
Engine RPM:525@1425
Dimensions & Tires
Wheelbase:84 inches
213 cm
Weight:2900 lbs
1315 kg
Front tire:6.00-16
Rear tire:9-36
Full dimensions and tires ...
VAH Serial Numbers
Location:Serial number plate on the tractor's instrument panel.
1942:4600001
1943:4700001
1944:4800001
1945:4900001
1946:5000001
1947:5100001
1948:5200001
1949:5300001
1950:5400001
1951:5500001
1952:5600001
1953:5700001
1954:5800001
1955:5900001

how to read serial numbers...

Belt Pulley
Diameter:10.25 inches
26 cm
Width:6 inches
15 cm
RPM:969
Speed:2600 ft/min
792.48 meters/min
Electrical
Ground:positive
Charging system:generator
Charging amps:12
Battery volts:6
